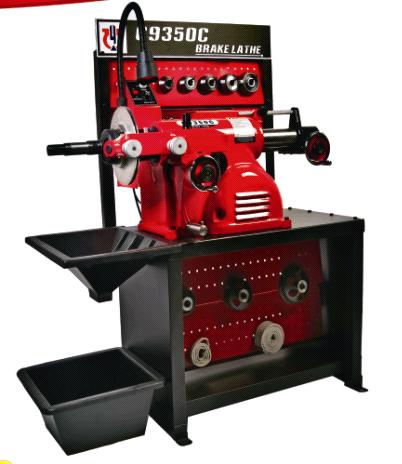

Brake Lathe C9350C

Product Detail
  Specification :
  Spindle Travel:   6. 875”(175mm)
  Spindle Speed  : 70, 88, 118RPM
  Rotor Diameter:   7”-15” (180mm-381mm)
  Rotor Thickness:   1-7/8” (48mm)
  Drum Diameter:   6”-28” (152mm-711mm)
  Drum Depth: 9. 875”
  Motor:     110V/220V/380V, 50/60Hz
  Shipping Weight:   350KG
  Dimension:     970mmX920mmX1140mm
  Feature:
  * The lathe uses precision electeic DC servo motors designed to meet the demanding requirement  of industrial motion control .
  * The precision twin cutter tools and a quick drum to rotor changeover to help increase your  service capability .
  * Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts .
  * A convenient top storage tray means you can easy to take your favorite adapters and tools .
  * Separate motors on the drum and totor feed help maximize the main motor's efficiency .
  * The variety of adapters lets you machine all standard and composite rotors for foreign and  domestic cars and light trucks .
  * Positive rake cutter tip angle provides for a one pass finish virtually every time , allowing you  to complete your work fast .
