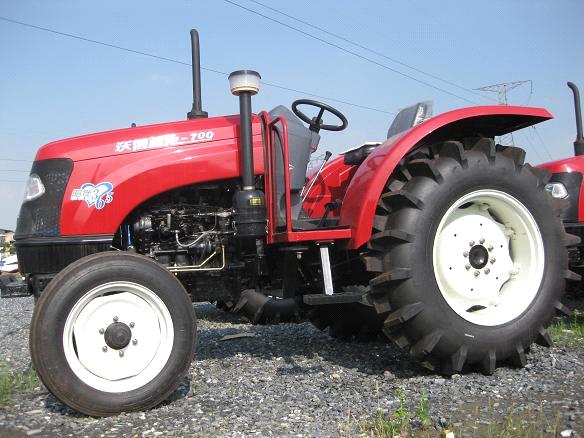

Tractor (70HP-75HP)

Detailed Product Description

Model		WD700	WD750	WD704	WD754
Drive Type		4×2		4×4
Engine	Engine Power(HP)	70	75	70	75
	Rated Revolution(RPM)	2300
Rated Traction Force(KN)		15	15	17	17
Rated Elevating Force(KN)		12
PTO(KW)		44	46.8	44	46.8
Overall Dimension	Length(mm)	3760
	Width(mm)	1940	1890	1940	1940
	Hight(mm)	2710	2600	2710	2710
Center Distance(mm)		2188		2236
Wheel Base	Front Wheel(mm)	1450		1450
	Rear Wheel(mm)	1510
Weight(KG)		2700	2705	2950	2705
Transmission	Cluth	Dry-type, Single-disc, Double action clutch
	Gearbox	Planetary reduction combined IZ type
Steering Type		Independent hydraulic steering
Brake Type		Dry-type, Dual-disc, Disc
Hitch Catagory		Ⅱ-type or three-point hitch linkage
PTO Shaft Rotation Speed (r/min)		540 or 760 or 1000
Tire Dimension	Front Wheel	6.50-20
	Rear Wheel	14.9-30
Fuel Tank Capacity(L)		80
