GPS tracker

Detailed Product Description

Product Features

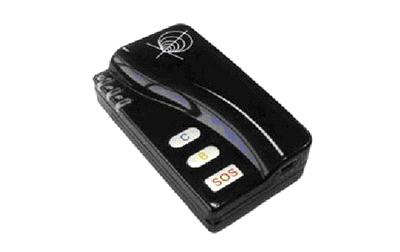

PRODUCT: Tracker-GSM/GPRS & GPS

PART NO.: TRA

APPLICATION

TR A provides an easy way to track your targets and provides peace of mind by showing you with your mobile phone or PC the location of your targets via SMS or GPRS.

FEATURES

Tracking via SMS or GPRS (TCP/UDP)

Current location report

Tracking by time interval

Two-way conversation

Voice monitoring (wiretapping)

SOS alert

Geo-fencing control

Low battery alert

Speeding alert

Alert when TR A enters/exits GPS blind area

Alert when TR A is turned on.

Motion sensor inbuilt for power saving

Three buttons for making phone call and/or sending message

Removable and rechargeable internal battery

Built-in speaker and microphone(optional)

SPECIFICATION

Item	Specification
Charging Voltage	DC 4.2-5.5V/400mA (Mini USB port)
Internal Battery	Rechargeable and removable 950 mAh battery (3.7V)
Dimension	78 mm × 45 mm × 21 mm
Weight	75g
Operating temperature	-20° to 55° C
Humidity	5% to 95% Non-condensing
GSM module	GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Chipset	High sensitive GPS receive
GPS Sensitivity	-159Db
GPS Frequency	L1, 1575.42 MHz
C/A Code	1.023 MHz chip rate
Channels	20 channel all-in-view tracking
Position Accuracy	10 meters, 2D RMS
Velocity Accuracy	0.1 m/s
Time Accuracy	1 us synchronized to GPS time
Default datum	WGS-84
Reacquisition	0.1 sec., average
Hot start	1 sec., average
Warm start	38 sec., average
Cold start	42 sec., average
Altitude Limit	18,000 meters (60,000 feet) max.
Velocity Limit	515 meters/second (1000 knots) max.
Acceleration Limit	Less than 4g
Jerk Limit	20 m/sec
Work time	60 hours in sleep mode and 10 hours in normal mode
LED	3 LEDs showing power, GPS, GSM status and other operation status.
Button	3 buttons(SOS/B/C) for making phone calls or sending SMS

shen zhen roadtom technolgoy company limited

roadtom.com

sales@roadtom.com

Place of Origin:	Shenzhen in China
Model No:	TRACKER - TR-A
FOB Price:	65-73 USD shen zhen
Payment Terms:	T/T(Bank Transfer),
Minimum Order:	Piece/Pieces 50
Supply Ability:	Piece/Pieces\|100000\|Month
