Breath Alcohol Tester

Detailed Product Description

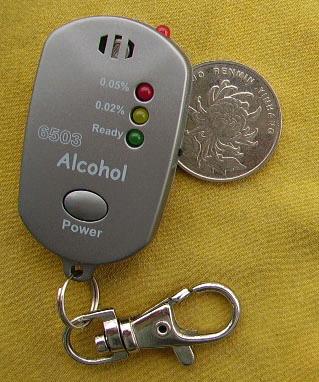

6503A Mini Breath alcohol tester ( V1.00 )

1. Features

1) By HIG high-performance 8-bit microcontrollers (12 bit A / D) control, the MEMS sensor for the SM alcohol gas sensor (C₂H₅OH);

2) Single-button operation, with low-voltage directive function;

3) At the top of a small high-brightness LED lighting;

4) 3 files LED visual display,

alarm point: 0.05% BAC,0.08% BAC（adjustable）

2. Technical parameters

1) Show value: 3 LED display(green, yellow and red)

2) Test range: 0.00 ~ 0.10% BAC (blood alcohol content)

3) Warm-up time: 8 seconds

4) Response time: ≤ 5 seconds

5) Recovery time: ≤ 15 seconds

6) Input power: DC 3V (CR2032 button ×1)

7) Alarm range: When the alcohol concentration of gases overrun, the automatic alarm buzzer.

8) Products size: 50 × 31 × 8.5 mm³

Place of Origin:	Shenzhen in China
Model No:	6503A
