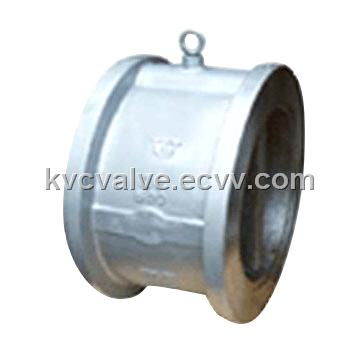

Wafer Check Valve

Detailed Product Description

Specifications:

1) Design standard: API 594

2) Inspection and test standard: API 598

3) Face-to-face: ANSI 594, DIN 2401

4.1) Connection: ANSI B16.5, DIN 2543-2548

4.2) Flange: ANSI B16.5, DIN 2543-2548

5) Size: 1 / 2"-24"

6) Class: 150lb – 900lb

7) Temperature: -28oC - 350oC

8) Body / bonnet: WCB / WC6 / WC9 / CF8 / CF8M / CF3 / CF3M

9) Trim: 13%Cr / STL

10) Sealing: flexible graphite, metal-to-metal

11) Type: HD, HR, PD, single disc, double-disc, spring-piston, left

Place of Origin:	Henan in China
Model No:	HNKVC-015
Package:	Packing: Wooden crate for sea transportation
