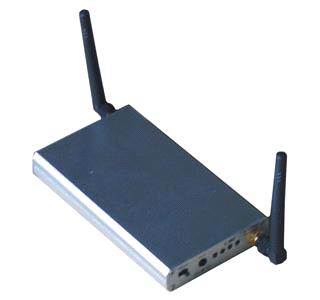

2.4GHz Wireless Signal Amplifier (TE970)

Detailed Product Description

*2.4GHz Wireless AV signal integrated receive and transmit;
*Extend wireless transmission distance up to 300-500 meters

Advantages:

1) Strong power-- 500mW ;

2) Support multiple units to work together for longer range get;

like, 2 repeaters can extend range up to 1000 meters. If more repeaters, longer range extended;

3) Not any noisy;

4) Portable with built-in li-battery(4 hours continuous working), very convenient to place anywhere you like;

5) Easy operation, no need any cable set. Just power on and it start to work!

6) Encrypted frequency available for choice to avoid interference and protect privacy.

Accessories:

① Main body

② DC 5V power adapter

③ Directional antenna to extend range to 1000 meters(optional purchase)

④ Omni antenna

⑤ Extended cable

Parameter list:

Item	Value
Frequency	1) Receiver CH1(2414MHz)Transmitter CH4(2468MHz) 2) Receiver CH1(2370MHz)Transmitter CH4(2510MHz)
Modulation Type	FM
Antenna Type	Directional/Omni
Operating Temperature	-10℃~ +50℃ / +14℉~ +122℉
Storage Temperature	-20℃ ~ +60℃ / -4℉ ~ +140℉
Operating Humidity	85%RH
Receiving Sensitivity	≤-85dBm
Transmission Power	100mW
Video System	PAL/NTSC
Audio System	6.0MHz
Antenna Port	50ohm SMA
Consumption Current	300mA(Max.)
Built-in Li-battery	120mAh
Li-battery working time	4 hours
Power Supply	DC5V 500mA
Dimensions (LXWXH)	12 X 6.7 X1.7 CM

Place of Origin:	Guangdong in China
Model No:	TE970
Brand Name:	3rd Eye
Other Price Terms:	FOB shenzhen
Payment Terms:	T/T(Bank Transfer),Western Union,PayPal,
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|2000\|Month
Package:	Gift box
Delivery Time:	sample is ready
