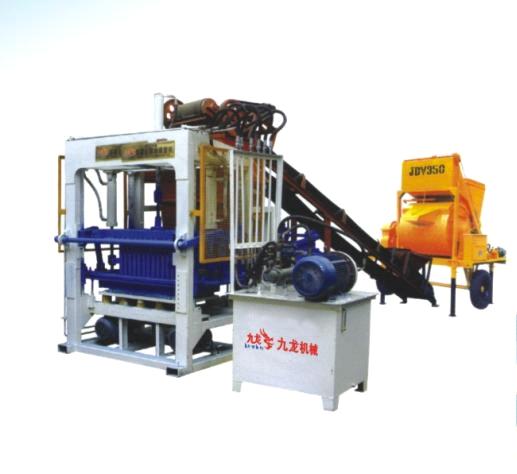

JL4-15 hydraulic block making machine

Detailed Product Description

Feature:
Unique structure. The use of special materials and break under the arch agencies, through multi-material mixing tank equipped with a fork. Feed me to the mold box above, the mixing fork work mode box under the mandatory materials, to ensure that material under the fabric smooth and uniform to ensure that the product strength, uniformity of weight.

Super exciting force design, the use of computer-controlled hydraulic system flow, pressure, vibration to achieve a vertical synchronization, frequency, brakes, to ensure that the products in the short term high-intensity, high-density.

A multi-purpose machine, applicability, allocation of mold can produce a variety of different shape, size block wall, brick and so on.
JL4-15A Automatic hydraulic block making machine main technical parameters

	Product specifications	The number of each plate	Molding cycle	Pieces / 8 hours
Block	390×190×190	4	15	7680
Brick	245×115×90	12	15	23040
Standard brick	240×115×90	24	15	46080

JL4-15B Automatic hydraulic block making machine main technical parameters

	Product specifications	The number of each plate	Molding cycle	Pieces / 8 hours
Block	390×190×190	4	15	7680
Brick	245×115×90	12	15	24960
Standard brick	240×115×90	26	15	49920

JL4-15C Automatic hydraulic block making machine main technical parameters

	Product specifications	The number of each plate	Molding cycle	Pieces / 8 hours
Block	390×190×190	4	15	7680
Brick	245×115×90	12	15	26880
Standard brick	240×115×90	28	15	53760
