Henan Tianrong Mining Machines Co., Ltd.

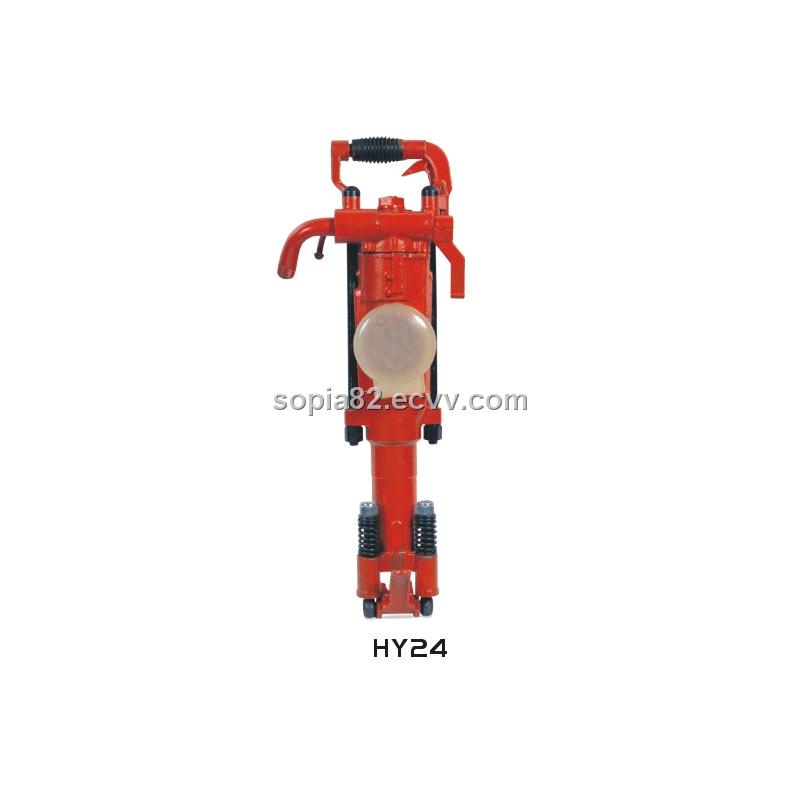

Air leg rock drill

Detailed Product Description

To adapt to various types of mines, roads, railways, water conservancy, architecture, urban affairs and military engineering.
 Rock drill hole diameter 32-42mm.
YT24 Air-leg Rock Drill efficient light, suitable for hard or harder in the (f = 8-18) _disibledevent= "urn:schemas-microsoft-com:office:smarttags" />-42 mm in diameter, effective drilling depth of up to 5 meters. This machine can be equipped with gas FT140BD Short legs, can be equipped with FT140B-type long-winded legs, can also be relieved gas leg, installed in the station car; Can be horizontal or inclined drilling holes in a variety of indoor operations, machine re-light, low air consumption, in particular, accompanied by a small air compressor suitable for mobile operations; to start a flexible, gas-water interaction, energy-saving and efficient. Good reliability, easy operation, easy maintenance.
Technical parameter Of YT24

Type

YT24
 Weight
24 (Kg)
Length
678 (mm)
 Cylinder dia
φ70 (mm)
 Piston stroke
70 (mm)
 Working pressure
0.4~0.5 (Mpa)
 Impact energy
44.7 (J)
 Impact frequency
≥31 (Hz)
 Air consumption
≤66.7 (L/s)
Working water pressure
0.2~0.3 (Mpa)
 Air pipe inner dia
φ19 (mm)
Water pipe inner dia
φ13 (mm)
 Rock drill hole dia
φ34~φ42 (mm)
 Rock drill hole depth
5 米(m)
 Shank size

22×108 (mm

Also we can of series of YT23,YT23D,YT24,YT27,YT28, and HY18, HY19...HY28 and so on.



Place of Origin:Henan in China
Model No:YT24
Brand Name:JInGe
FOB Price:25-500 USD Tianjin
Payment Terms:L/C,T/T(Bank Transfer),
Minimum Order:Piece/Pieces 1
Delivery Time:7-15days after prepayment.
