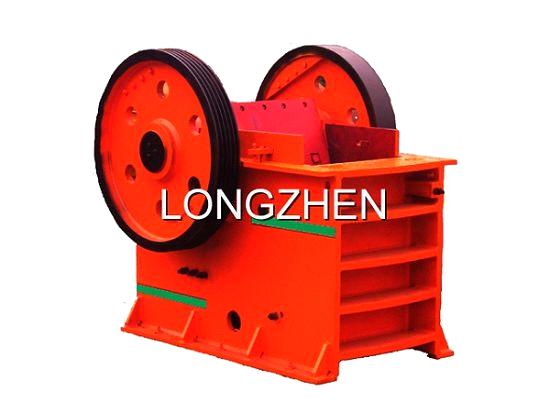

Jaw Crusher (PE400*600)

Detailed Product Description

Jaw crusher is the common crushing equipment in the world nowadays, has the priority of the big crushing rate, equal end product size, easy construct, easy maintenance act, has the two kinds of the rough and fine crusher, the highest anti-pressure of the end product can reach the 320MPa.
Used widely in many fields of the mining, steel, architect, road, railway, irrigation and chemical sector.

Model	Feed Opening Size(mm × mm)	Max Feed Edge(mm)	Discharge Opening Range (mm)	Processing Capacity(t/h)	Eccentric Shaft Speed(r/min)	Motor Power(kw)	Weight(t)	Overall Dimensions (mm)
Model	Feed Opening Size(mm × mm)	Max Feed Edge(mm)	Discharge Opening Range (mm)	Processing Capacity(t/h)	Eccentric Shaft Speed(r/min)	Motor Power(kw)	Weight(t)	A	b	c	d	e	f	g	h	i
PE-600 × 900	600 × 900	500	65-160	50-120	250	55-75	15. 5	1840	1420	960	1540	1515	2305	1590	400	1505
PE-750 × 1060	750 × 1060	630	80-140	52-180	250	110	28	2472	1820	1060	2010	1660	2450	1850	430	1980
PE-800 × 1060	800 × 1060	640	100-200	136-230	250	110	29	2472	1820	1060	2010	1660	2500	1850	530	1980
PE-900 × 1200	900 × 1200	750	95-165	140-260	200	132	46. 5	3182	1976	1200	2125	1800	3335	2155	830	2530
PE-1000 × 1200	1000 × 1200	850	195-265	315-342	200	132	47	3182	1976	1200	2125	1800	3435	2255	860	2530
PE-1200 × 1500	1200 × 1500	1020	150-300	400-800	180	200	83. 5	3732	1780	1620	2700	2285
