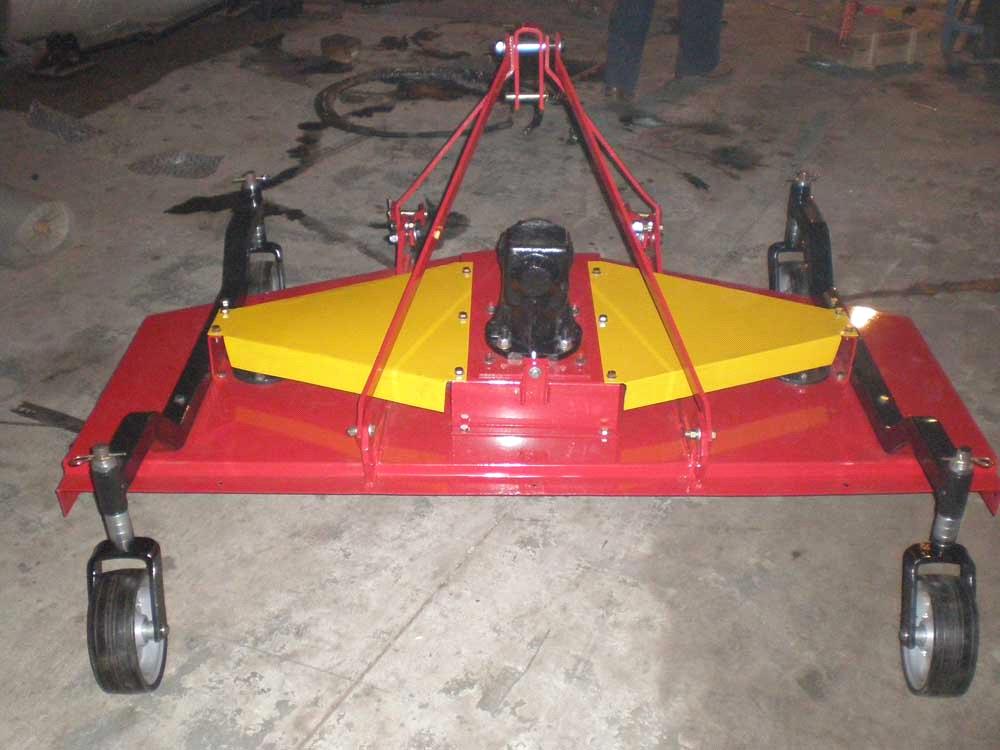

Lawn Mower

Detailed Product Description

MODELS
FM-120
FM-150
FM -180

CUTTING WIDTH(INCHES)
120cm(48")
150cm(60")
180cm(72")

DIMENSIONS
1330x860x480mm
1640x995x480mm
1930x1180x480mm

CUTTING HEIGHT(INCHES)
25-100mm
(1"-4")
25-100mm
(1"-4")
25-100mm
(1"-4")

WORKING EFFICIENCY
4000-10000m2
4500-12000m2
5000-15000m2

TRACTOR POWER
15-30hp
25-50hp
40-70hp

WHEELS SIZES
Solid Rubber Tires with ball bearings 210 x 80 mm
(8" x 3")

No.OF TRANSMISSION SHAFTS
4
4
4

No.OF BLADES
3
3
3

BLADE MATERIAL
Spring Steel

BLADE SIZES
LENGTHxWIDTHxTHICKNESS
422x60x6mm
522x60x6mm
623x60x8mm

BLADE SPEED
3375rpm
4470m/s
2700rpm 4425m/min
2250rpm
4401m/s

3-POINT CATEGORY HITCH
I
I or II
I or II

PTO.POWER REQUIRED
10~16kw 13~21hp
12~24kw 16~33hp
25~32kw
21~43hp

OPTIMUM P.T.O.
540rpm
540rpm
540rpm

P.T.O SPINE
6x6x900mm
6x6x900mm
6x6x900mm

MACHINE WEIGHT
195kg
215 kg
265kg

OIL TYPE
EP SAE 80W ?§C 90

OIL AMOUNT
0.9 L (Gal. 0.20)

DISCHARGE
R-rear; S-side(left); RC-rear discharge with chain.
Example: FM-150RC, Cutting 150cm rear discharge with chain
