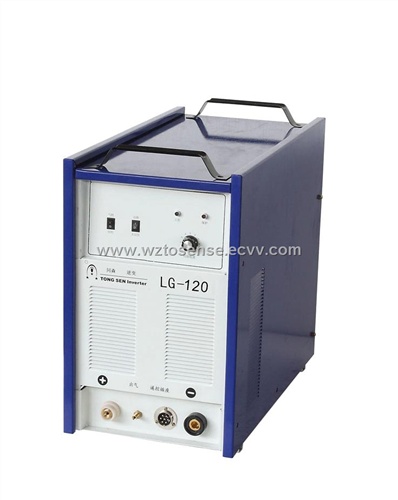

Parameter LG120
|
Input power voltage (V) |
AC380V+/-15 % |
|
Rated Load Voltage(V) |
22. 6 |
|
Input voltage frequency(Hz) |
50/60 |
|
Rate input power capacity(kva) |
15. 2 |
|
Rated input current (A) |
23 |
|
No-load voltage(A) |
224 |
|
Output current range(A) |
20-120 |
|
Efficiency |
85% |
|
Duty cycle (%) |
60 |
|
Insulation class |
F |
|
Protection class |
IP21 |
|
Air pressure |
0. 6 |
|
Thickness |
35mm |
Accessories
-Plasma cutting torch with 11 ft hose
-Ground cable (9 FT) with clamp.
-Initial cutting consumables (tips, electrodes, o-rings and shield cups)
-Air filter and regulator with accessories and brackets
-Air hose
-User manual Life guarantee: 2 years
Parts: free of charge by tnt/dhl
Feedback to old customers:
1, If the total order amount is more than 500 sets per year, we will send 1x cut50 and ct416 for free. (more 1000 sets , 5sets)
2, If you can introduce new customers to us, we will provide you more consumables to express our appreciation
3, We hope all new customers will be old friends, and all old friends will do bigger business
