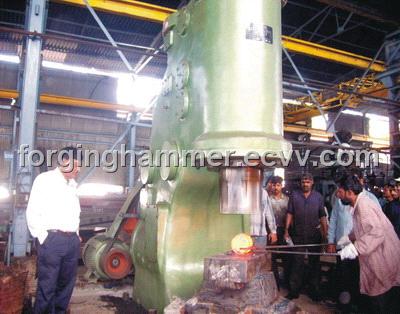

Pneumatic Forging Hammer

Detailed Product Description

Product Name: Forging Hammers
C41-150
C41-250
C41-400
C41-560
Weight of falling parts (kg) )
150
250
400
560
Max hit energy(kj)
2.5
5.6
9.5
13.7
Hit number(min-1)
180
140
120
115
Height of working area (mm)
370
450
530
600
Tup axis to frame front (mm)
350
420
520
550
Dimension of top die surface(L x W) (mm)
200x85
220x100
250x120
300x140
Dimension of bottom die surface(L x W)
200x85
220x100
250x120
300x140
Max forged square stock
130x130
145x145
220x220
270x270
Max forged round stock
Φ145
Φ175
Φ240
Φ280
Motor
Type
Y180M-4-B3
Y180L-4-B3
Y200L-4-B3
Y280S-6-B3
Power(kw)
18.5
22
30
45
Weight
Hammer(kg)
3260
5000
8000
9800
Anvil block(kg)
1500
2500
4800
6720
Outside Size
2390x1085x2150
2639x1155x2540
2785x1400x2884
3464x1500x3157


Product Name: Forging Hammers
C41-750
C41-1000
C41-2000
Weight of falling parts (kg) )
750
1000
2000
Max hit energy(kj)
19
27
54
Hit number(min-1)
105
95
80
Height of working area (mm)
670
800
1000
Tup axis to frame front (mm)
750
770
950
Dimension of top die surface(L x W) (mm)
330x160
365x180
400x300
Dimension of bottom die surface(L x W) (mm)
330x160
365x180
400x300
Max forged square stock
270x270
290x290
350x350
Max forged round stock
Φ300
Φ320
Φ400
Motor
Type
Y280M-6-B3
Y315S-6-B3
Y315L2-6-B3
Power(kw)
55
75
132
Weight
Hammer(kg)
17000
20000
48000
Anvil block(kg)
9000
13000
24000
Outside Size
3905x1370x3175
4125x1500x3770
4200x2300x4390
