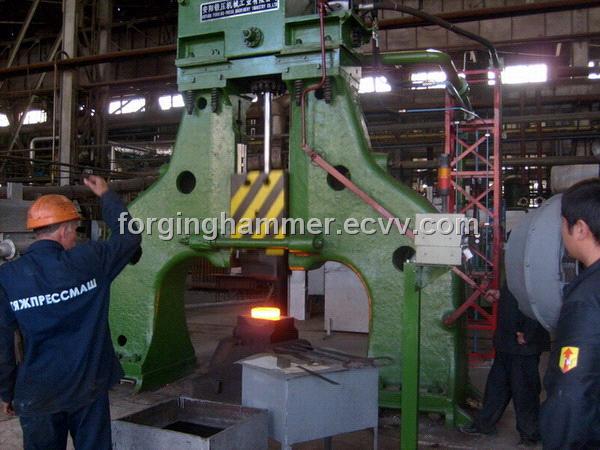

Electro-hydraulic Open Die Forging Hammer

Detailed Product Description

My factory is oldest professional forging equipment manufacturer, we can offer following forging equipments with quality and fair prices:

Electro-Hydraulic Open Die Forging Hammers capacity at 1T, 2T, 3T, 4T, 5T, 6 T, 7T, 8T, 10T.

Electro-hydraulic Power Head For Rebuilding Hot Air Steam Hammer into Advanced Electro-hydraulic Hammer

Item	Unit	C66-350（10T）	C66-420（12T）	C66-490（14T）
Hit energy	KJ	350	420	490
Rated weight of falling parts	kg	10500	12500	14500
Maximum stroke	mm	2400	2500	2500
Hit frequency	min-1	44-46	42-45	42-45
main oil pump	type	A2F160R5P2	A2F160R5P2	A2F160R5P2
Main motor type		Y280s-4-B35	Y280s-4-B35	Y280s-4-B35
Main motor power	kW	75	75	75
motor/pump number	set	10	12	16
Cooling oil pump		2*KCB-633	2*KCB-633	2*KCB-960
Cooling motor type		Y160L-6	Y160L-6	Y180L-4
Cooling motor power	kW	11×2	11×2	22×2
Heat exchanger area	m2	80	80	80
Guide space	mm	980	1050	1050
Working area(WxH)	mm	4800x2350	5000x2500	5000x2500
Lower die surface height above ground	mm	900	900	900
Machine outside size(L× W× H)	mm	7500280010000	7600300012000	7600300013000
Oil tank Outside size(L× W× H)	mm	900020001600	1080020001600	272002000*1600
