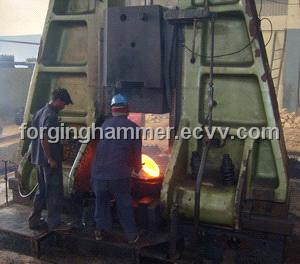

Electro-hydraulic Closed Die Forging Hammer

Electro-hydraulic Closed Die Forging Hammer

Detailed Product Description

Electro-Hydraulic Closed Die Forging Hammers capacity at 1T, 2T, 3T, 5T, 8T, 10T, 16T.

Item		Unit	C86-25（1T）	C86-25（1T）	C86-50（2T）
Max hit energy		KJ	25	25	50
Weight of falling parts		kg	1500	1500	2500
Max stroke		mm	1000	1000	1200
Hit number		min-1	55-65	55-65	55-65
Main oil pump		type	A2F160R2P3x1	A2F160R2P3x2	A2F125R2P3×3
Main motor		type	Y250M-4-B35	Y225M-4-B35	Y225M-4-B35
Main motor power		kw	55	45	45
Number of motor			1	2	3
Guide space		mm	540	540	600
Min close die height (without dovetail groove)		mm	220	220	260
Machine outside size(L× W× H)		mm	2400x1400x6000	2400x1400x6000	3000x1700x6500
Oil tank outside size (L× W× H)		mm	2000x1500x1300	2000x1500x1300	2700x2000x1600
Cooling oil pump			KCB-125	KCB-200	KCB-200
Cooling motor	type		Y132S-6	Y112M-4	Y112M-4
Cooling motor	power	kW	3	4	4
Heat exchanger area		m2	10	15	20

Item		Unit	C86-75（3T）	C86-125（5T）
Max hit energy		KJ	75	125
Weight of falling parts		kg	3500	6000
Max stroke		mm	1250	1300
Hit number		min-1	50-60	45-55
Main oil pump		type	A2F160R2P3×3	A2F160R2P3×4
Main motor		type	Y250M-4-B35	Y250M-4-B35
Main motor power		kw	55	55
Number of motor			3	4
Guide space		mm	700	740
Min close die height (without dovetail groove)		mm	350	400
Machine outside size(L× W× H)		mm	3200x1800x7100	3700 x2100x8600
Oil tank outside size(L× W× H)		mm	2700x2000x1600	3600 x2000x1600
Cooling oil pump			KCB-300	KCB-483.3
Cooling motor	type		Y132M-6	Y132M-4
Cooling motor	power	5.5	kW	7.5
Heat exchanger area		m2	25	30

Item		Unit	C86-200（8T）
Max hit energy		KJ	200
Weight of falling parts		kg	8600
Max stroke		mm	1350
Hit number		min-1	40-55
Main oil pump		type	A2F160R2P3×5
Main motor		type	Y250S-4-B35
Main motor power		kw	55
Number of motor			5
Guide space		mm	900
Min closed die height (without dovetail groove)		mm	430
Machine outside size(L× W× H)		mm	4300 x2700x11200
Oil tank outside size(L× W× H)		mm	4500 x2000x1600
Cooling oil pump			KCB-633
Cooling motor	type		Y160L-6
	power	5.5	11
Heat exchanger area		m2	40

Item		Unit	C86-250（10T）	C86-400（16T）
Max hit energy		KJ	250	400
Weight of falling parts		kg	10500	16300
Max stroke		mm	1400	1500
Hit number		min-1	30-40	30-40
Main oil pump		type	A2F160R2P3×6	A2F160R2P3×8
Main motor		type	Y250M-4-B35	Y280M-4-B35
Main motor power		kw	55	75
Number of motor			6	8
Guide space		mm	1000	1200
Min close die height (without dovetail groove)		mm	450	500
Machine outside size(L× W× H)		mm	4400 x2700x12000	4500 x2600x13100
Oil tank outside size(L× W× H)		mm	5400 x2000x1600	7200 x2000x1600
Cooling oil pump			KCB-960	2*KCB-633
Cooling motor	type		Y180L-4	Y160L-6
Cooling motor	power	kW	22	11*2
Heat exchanger area		m2	50	40+40
