Intelligent Building Integrated Trainer Series

Functions and features

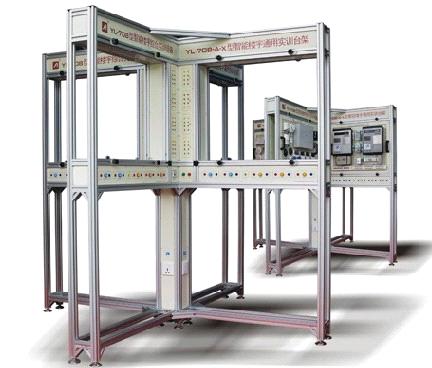

Stand structure: save space occupied as much as possible.

4-position structure: each stand can accommodate 4 positions, and in each position, two modules can be placed.

Independent module: according to training content requirements, flexibly adjust various modules (no need to use tools to fix).

Communication bus interface: in a same position, bus connection among various modules on a same stand, for various functions, and compose various intelligent building systems. As shown below:

Technical standard

Power supplyinput: AC220V; 4mm²; grounding in third mode.

Control mode: operation, stop (lock) switch

Protection: single-phase leak protection switch; branch switch power supply

Power supply output; universal 3-pin sockets, AC220V; safety interface, AC 220V, DC24V, DC18V, DC12V; indicator light is used to show current working status

Communication interface: 8-bit

PC interface: RJ45 shielded
