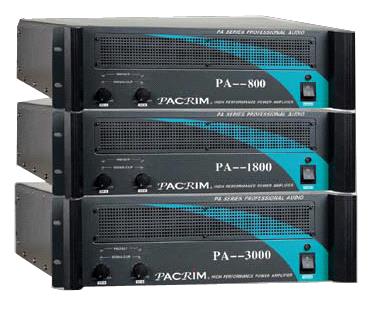

PA Power Amplifier

Detailed Product Description

SPECIFICATION	PA-800	PA-1400	PA-1800	PA-2400	PA-3000	PA-3600
Input Impedance	20 KΩ	20 KΩ	20 KΩ	20 KΩ	20 KΩ	20 KΩ
Frequency Response	20Hz-20KHz	20Hz-20KHz	20Hz-20KHz	20Hz-20KHz	20Hz-20KHz	20Hz-20KHz
Input Sensitivity	0dB (0.775)	0dB (0.775)	0dB (0.775)	0dB (0.775)	0dB (0.775)	0dB (0.775)
Damping Factor	>300	>300	>300	>300	>300	>300
Crosstalk	>70dB	>70dB	>70dB	>70dB	>70dB	>70dB
Hum Noise	>90dB	>90dB	>90dB	>90dB	>90dB	>90dB
Tota Harmonic Distortion	<0.05%	<0.05%	<0.05%	<0.05%	<0.05%	<0.05%
Power RMS 8 ohms	2 x 250W	2 x 450W	2 x 600W	2 x 800W	2 x 1000W	2 x 1250W
Power RMS 4 ohms	2 x 400W	2 x 700W	2 x 900W	2 x 1200W	2 x 1600W	2 x 2000W
Bridge Mode 8 ohms	800W	1000W
Power Supply	AC220V,50Hz	AC220V,50Hz	AC220V,50Hz	AC220V,50Hz	AC220V,50Hz	AC220V,50Hz
Dimension (mm)	482x390x132	482x390x132	482x390x132	482x390x132	482x390x132	482x390x132
Wight (kg)	18 KG	20KG	22KG	32KG	38KG	45KG
