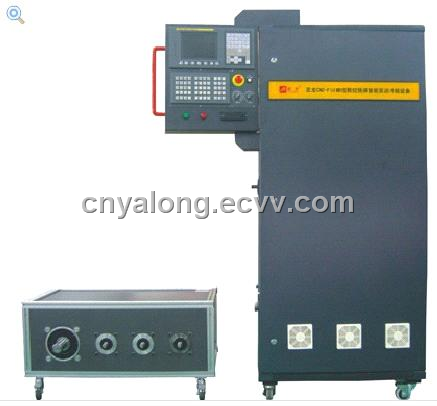

Yalong CNC-F0i MD CNC milling machine intelligent trainer is suitable for FANUCCNC system machine maintenance, debugging, electrical design, programming, processing training and teaching, and the equipment is composed of CNC machine control cabinet and units. The CNC machine control cabinet is as same as real CNC machine electrical cabinet the system control cabinet the system control cabinet is in a suspend arm structure, to realize industrial field real CNC electrical environment, and the trainer can attached with Machinery, other half real, real machine units, in order to let students learn CNC machine control cabinet control and FANUCCNC machine electrical control technology.
CNC machine control cabinet provides a real external CNC electrical circuit, and Intelligent testing system, to make faults settings by computer, with open ports, so students can search for faults and carry out alarming functions by FANUC ladder programs, detect by instruments and meters, find faults, eliminate faults, also they can eliminate faults when power is off, which improves students’ actual capabilities in troubleshooting.
In the whole circuit system, with enough I/O terminals, students can carry out PMC design training through operation on switches. By load unit connection, they can carry out mechanical overload effect on servomotor performance experiment, load inertia experiment, close-loop control experiment, mechanical overload experiments, in order to found the basis for CNC machine mechanical design, and the trainer also simulates hard problems in CNC machine mechanical faults for students to master the FANUC CNC application technology completely.
Intelligent testing software owns functions such as students logging, automatic appraisal, results statistics, can carry out CNC technology learning testing through network, relieving teachers’ working burden, therefore, it is an ideal trainer for CNC processing and CNC maintenance technologies.
Functions
1. CNC maintenance, debugging, electrical design, programming, processing integrated.
2. PMC design, parameters debugging.
3. Servomotor load, inertia training, close-loop control training.
4. Feed precision debugging training.
5. Electrical and mechanical overload faults maintenance training.
6. Intelligent testing system, computer faults settings.
7. Servo spindle control training.
8. Suspend arm control cabinet structure.
Main technical parameters
Power supply input: 3-phase 5-line AC380V±5%
Total capacity: ≤3.5KW(according to units used )
System: FANUC 0i MCCNC system (8.4" colorful LCD)
Feed drive: SVM2-40/40i digital servo+αiF8/3000 servomotor
Spindle control: SPM servoamplifier+αiI3/10000 servomotor
Raster length: 350mm
Control cabinet dimension: 800mm×600mm×1850mm
Machinery dimension: 1000mm×600mm×700mm
Total weight: 400kg
| Place of Origin: | Zhejiang in China |
| Model No: | 1C421300 |
| FOB Price: | 42000-45000 USD ningbo/shanghai |
