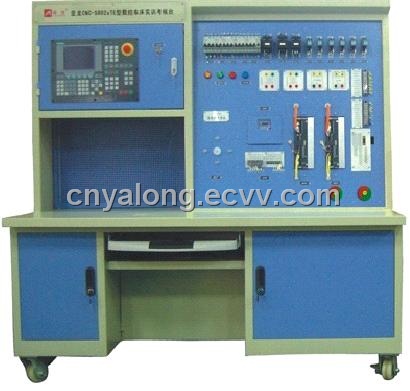

Yalong CNC-802sTECNC lathe trainer is designed and developed according to requirements in "Education Industry Standard (CNC technology application instrument and equipment standard) of People’s Republic of China”, Ministry of Education: "The 21st Century Vocational Education Courses Reform and Teaching Materials Planning”, "Shortage Talents Training Plan”, actual requirements on technical and vocational skills in actual industrial production, and requirements on teaching and training in vocational schools. The trainer, with SIEMENSE 802C CNC machine, owns functions such as installation debugging, parameters adjustment, PLC settings, faults diagnosis, CNC programming operation and so on.
Functions
1．CNC unit connection and control
2．CNC lathe faults diagnosis
3．CNC lathe circuit analysis
4．Stepper drive unit circuit fundamental
5．PLC parameters settings, PLC design, PLC programming practice
6．Frequency converter debugging and application
7．CNC system installation, debugging and maintenance
8．Machine reference points settings
9．Cutter bracket control fundamental
10．CNC system c0mmunication
11．CNC lathe programming, operation, maintenance
12. Open structure, modular design, motor adopts rotary disc to reflect control effect.
13. With simple machine, real machine, intelligent faults settings units.
Power supply input: 3-phase 5-line AC380V±5%
Total capacity: 1.5KW
System: SIEMENSE 802Ssystem
Feed drive: hybrid stepper drive
Spindle control: 3-phase variable frequency speed regulation
Control cabinet dimension: 1760mm×820mm×1850mm
Total weight: 200kg
| Place of Origin: | Zhejiang in China |
| Model No: | 1C400400 |
| FOB Price: | 9000-11000 USD ningbo/shanghai |
