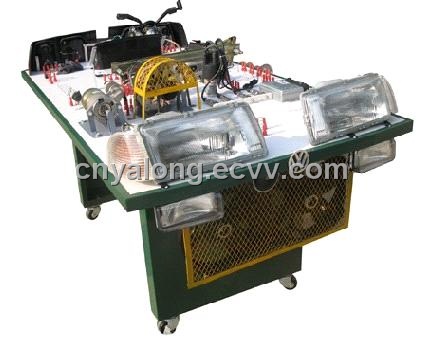

Vehicle Circuit Trainer (YL-603-TQ-JD)

YL-603-TQ-JD Order No.: 1G142800

YL-603-TQ-STN (Santana2000) Order No.: 1G142801

YL-603-TEAT-DF (Dongfeng) Order No.: 1G142802

Product parameters

Composition

It is composed of basic electric lighting system, instruments, rain wiper, starter, charging and ignition system elements, storage battery, movable bench.

Functions

1. Terminals and cables are used for circuits’ connection.

2. System electric elements circuit operation and faults setting, real-time simulation of all system faults, carry out diagnosis and elimination.

3. Can carry out basic circuits learning and training.

4. Can learn vehicle basic electric circuits’ composition, related systems and effects; learn vehicle circuit basic knowledge and skills in faults elimination.

5. With movable wheel bench, by high-temperature plastic spraying treatment, for color fastness for 5 years.

Main technical parameters

Dimension: 2100×1100×1100mm

Weight: 80±10kg

Power supply: 12V DC accumulator

Working temperature: - 40~50℃
