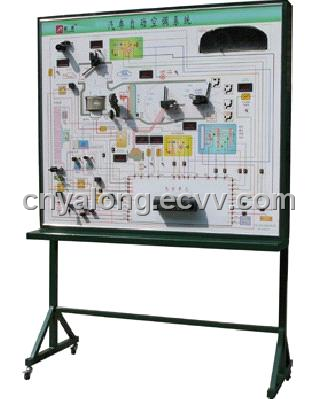

Automatic Air Conditioner System Demonstrator

YL-601-SAC-LS300 (Lexus300) Order No.：1G140200

YL-601- SAC -STN2000 (Santana2000) Order No.：1G140201

Product parameters

Composition

Automatic air conditioner system elements, combined instruments, voltmeter and movable wheel bench.

Functions

1. With automatic air conditioner system circuit diagram board, to arrange all elements, and show automatic air conditioner system.

2. With terminals, faults setting switches, easy to detect faults, learn functions fundamentals, and faults of all automatic air conditioner system elements.

3. Real-time control simulation, faults detection and elimination.

4. With movable wheel bench, by high-temperature plastic spraying treatment, for color fastness for 5 years.

Main technical parameters

Dimension: 1500×600×2000mm

Power supply: 220V AC 50HZ

Weight: 40±10kg

Working temperature:- 40~50℃
