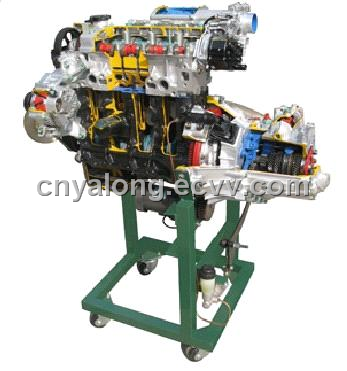

Engine + Manual Transmission Section Bench

YL-602-JE-5AFE (Toyota5A)                Order No.: 1G141400

Product parameters

Composition

Engine assembly and movable wheel bench

Functions

1. Sectioned engine, to show engine interior structure, including crank structure, gas distribution structure, lubrication structure, cooling system, gas supply system.

2. Driven by motor, to make sectioned model operate normally, to demonstrate crank, cam axle rotation, piston work; gas valve opens and closes, for timed gas distribution and ignition.

3. suitable for vehicle engine fundamental and mechanical structure teaching, directly show engine working process, all elements operation, structure and installation.

4. All sectioned elements can carry out normal mechanical operation; to show interior detailed structure and mechanical positions; distinguish various gas, oil and water systems in various colors.

5. Sectioned initial manual transmission; driven by engine, to demonstrate shift process, see how shift changes, for students to learn and understand manual transmission box fundamental and structure.

6. with movable wheel bench, by high-temperature plastic spraying treatment, for color fastness for 5 years.

Main technical parameters

Dimension: 800×800×1200mm

Power supply: 220V AC 50HZ

Weight: 100±10kg
