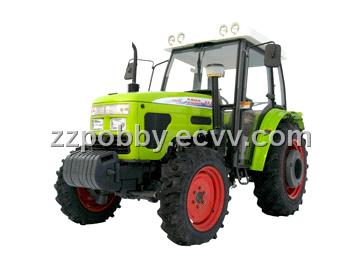

Wheeled Tractor

Detailed Product Description

Features:
1. Be adopted brand engine, large reserve power, low oil consumption, good economic performance, and high in reliability.
2. Hydraulic steering combination meters and combination switch are both good to look and easy to operate.
3. Besides independent double-speed power output, the synchronizing power output is set up; 540, 720, 1000 are optional for the customers.
4. The raiser is equipped with auxiliary oil cylinder, and the raising force is 22kn-25kn, and able to lift various large-scale composite farm implements, and realize the plowing operation by four depth-adjusting modes-force adjustment, position adjustment, force and position adjustment and floating adjustment.
5. Full-closed streamline luxury driving cab, adjustable spring seat, cold or warm air conditioner and complete sound equipment, comfortable driving environment;
6. Be equipped with multi-piece three-position multi-channel valve, also can be equipped with former loading and latter excavation and other engineering tools.

Main Specifications:

Model
UT704
UT804
UT854
UT904
Dimensions
(L×W×H)
4593×2050×2810
4593×2050×2810
4593×2050×2810
4593×2050×2810
Wheelbase (mm)
2195
2195
2195
2195
Tread of front
wheels (mm)
1610~1900
1610~1900
1610~1900
1610~1900
Tread of rear wheels
(8 steps adjustable)
1620~2020
1620~2020
1620~2020
1620~2020
Minimum ground clearance (mm)
397
397
397
397
Minimum turning
radius (mm)
4.1±0.3
4.1±0.3
4.1±0.3
4.1±0.3
Gearbox position
number forward/backward
12/4
12/4
12/4
12/4
Speed range forward/backward
33.77~2.83/6.54~3.33
33.77~2.83/6.54~3.33
33.77~2.83/6.54~3.33
33.77~2.83/6.54~3.33


Engine
Model
LR4108
LR4108
LR4108
LR4108
Type
In-line  Water-cooled  Direct Injection  Four-stroke diesel engine
Calibrated power(kw)
51.5
59
62.5
66
Calibrated speed
(rpm)
2300
2300
2300
2300
Calibrated fuel consumption rate for operating condition (g/kw.h)
≤245
≤245
≤245
≤245
Tire specification:front/rear
6.5-20/16.9-34
6.5-20/16.9-34
11.2-24/16.9-34
11.2-24/16.9-34
Hydraulic lifting capacity,at 610mm after the suspension point
16.8
18.6
19.6
20.8
Form of power output shaft
Rear,semi-independent type
Speed of power output shaft (rpm)
540/760,540/1000,760/1000

Place of Origin:Henan in China
Brand Name:UNIQUE
