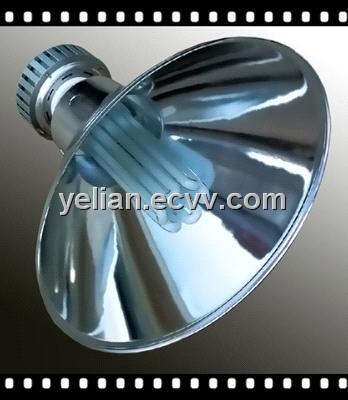

High power 6U energy saving lamp100w-180w
1. Circuit characteristics:
Adopt technology of Active Power Factor Compensation within a half-bridge output circuit, with ASIC from IR, USA, RLC output, frequency conversion & pre-heating & soft starting pattern
2. Specifications:
2. 1. High power with separate ballast, 120W-200W, 2700K-6400K.
2. 2 The maximum operating temperature of ballast is below 65, which guarantees the normal working temperature for ballast and prolongs its lifetime.
2. 3 Frequency conversion & pre-heating soft starting prolongs the lifetime of glass tube over 10 times than cold starting.
2. 4 55KHz of high frequency guarantees flicker-free and protect staff 's eyes working under light long time.
2. 5 70LM/W of high light efficiency, up to 80% less energy consumption.
2. 6 Lamp life of 10 years.
2. 7 Could be used for illumination of factory, warehouse, street, large mall, tunnel, school and advertising space, diverse glass and cover are available.
2. 8 With many abnormal protection, including ballast protection, short current of open-circuit output, transient overvoltage protection, guarantee the reliability of lamps 3. Details:
3.1 Rated voltage: 110V-220V
3.2 Rated frequency: 50Hz
3.3 Real power: 100W-200W
3.4 Light efficiency: 70LM/W
3.5 Power factor: > 0.99
3.6 CRI: > 85
3.7 Lifetime: 10 years
| Place of Origin: | Jiangsu in China |
| Model No: | 6U 100W-180W |
| FOB Price: | 30-50 USD shanghai,china |
| Payment Terms: | L/C,T/T(Bank Transfer),D/P,Western Union, |
| Minimum Order: | Piece/Pieces 500 |
| Supply Ability: | Piece/Pieces|200000|Month |
| Package: | foam+color box+yellow carton |
| Delivery Time: | within 20 days based on one 40'HQ |
