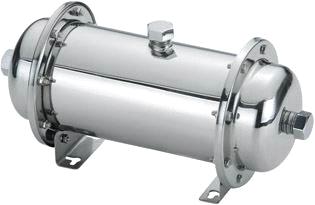

Household Water Purifier(AQU-01)

Detailed Product Description

Technical parameters

Membrane material :Hydrophilic PVC

ID/OD 0.9/1.6mm

MWCO 100,000 dalton

PH range :2-12

Temperature range :5-45℃

Shell material 304

Stainless steel

Effective membrane area of element :0.10m3

Outline dimension: ∮102*300(mm)

Way of filtration

In-to-out Preservation status wet

Epoxy resin moulding thickness 20mm

Removal rate of bateria and escherichia coli ≥99.99%

pure water flux（0.2Mpa，25℃） 600L/H

Dimensions of filter cartridge: ∮90*236(mm)

Dimension of inlet and outlet

Outer teeth quarter: (G1/2)

Connection of water purifier :Flanged joint
