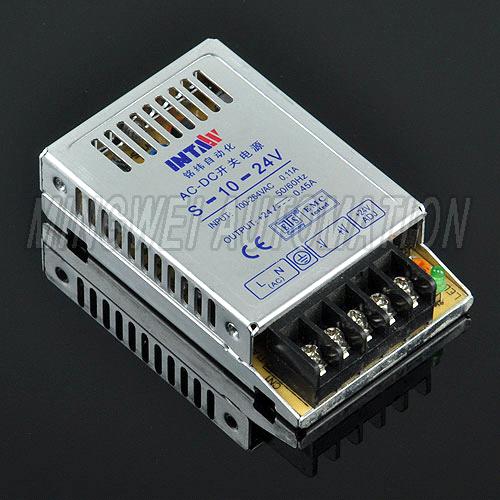

Mini Power Supply (S-35)

MODEL MS-10-5 MS-10-12 MS-10-24 OUTPUT DC VOLTAGE 5V 12V 24V RATED CURRENT 2A 0.83A 0.42A CURRENT RANGE 0 ~ 2A 0 ~ 0.83A 0 ~ 0.42A RATED POWER 10W 10W 10W RIPPLE & NOISE (max.) Note.2 50mVp-p 50mVp-p 100mVp-p VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 21.6 ~ 26.4V VOLTAGE TOLERANCE Note.3 ±2.0% ±1.0% ±1.0% LINE REGULATION ±0.5% ±0.5% ±0.5% LOAD REGULATION ±1.0% ±0.5% ±0.5% SETUP, RISE, HOLD TIME 200ms, 100ms, 30ms at full load INPUT VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 65% 68% 72% AC CURRENT 0.5A/115VAC 0.25A/230VAC INRUSH CURRENT (max.) COLD START 15A/115VAC 30A/230VAC LEAKAGE CURRENT <0.5mA/240VAC PROTECTION OVERLOAD 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is reoved ENVIRONMENT WORKING TEMP. -10 ~ +60oC (Refer to output load derating curve) WORKING HUMIDITY 20 ~ 90% RH non-condensing STORAGE TEMP., HUMIDITY -20 ~ +85oC , 10 ~ 95% RH TEMP. COEFFICIENT ±0.02%/oC (0 ~ 50oC) VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes SAFETY & EMC SAFETY STANDARDS Design refer to UL1012 WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMI CONDUCTION & RADIATION Design refer to FCC Part15 J Conduction Class B OTHERS MTBF 522.1K hrs min. MIL-HDBK-217F (25oC) DIMENSION 78*49*21mm (L*W*H) NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
