Portable Generator

Detailed Product Description

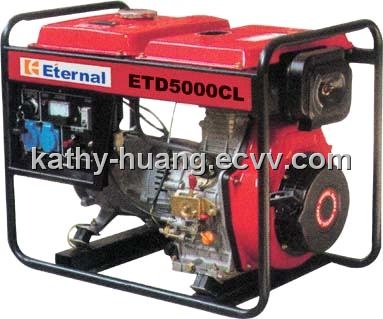

Diesel Generator
Alternator
Model	ET2500CL		ET3000CL		ET3500CL(E)		ET4000CL(E)
Alternator type	single-phase,synchronous alternator
Frequency (HZ)	50	60	50	60	50	60	50	60
Rated AC output(KW)	1.8	2.0	3.0	3.3	4.2	4.5	4.8	5.3
Max AC output(KW)	2.0	2.2	3.3	3.6	4.5	5.0	5.3	5.8
Voltage	110V，120V，220V，230V，240V，220/110V，240/120V（For option)
DC output	12Vx8.3A(For option)
Power factor	1.0
Excitation system	Self-excitation
Engine
Model	F210		F300		F400		F420
Type	Single-cylinder,vertical,4-stroke-cooler,direct-injection diesel
Displacement(cc.)	211		296		406		418
Bore(mm)	70		78		86
Stroke(mm)	55		62		70		72
Speed (RPM)	3000	3600	3000	3600	3000	3600	3000	3600
Continuous output(hp)	3.4	3.8	5.5	6.1	7.7	9.0	8.8	9.6
Max output(hp)	3.8	4.2	6.1	6.7	8.8	9.9	9.6	10.5
Starting system	Recoil(Electric) starter
Cooling system	Forced air
Governor	Centrifugal weight system
Fuel Diesel
Fuel tank capacity(L)	12.5		12.5		12.5		12.5
Lub. Oil capacity(L)	0.75		1.1		1.65		1.65
continuous working time	12.5		9		6.5		5.5
Frame
Type	Monoblock, 2 supports
Material	Steel
Wheels set	Optional
Package Dimention and weight
Dimentions (LxWxH)(mm)	650x485x640		720x485x645		766x515x725		766x515x725
Weight(kg)	68		81		113		113
Noise level
Noise level	82dB(A) at 4mts		85dB(A) at 4mts		88dB(A) at 4mts		88dB(A) at 4mts
