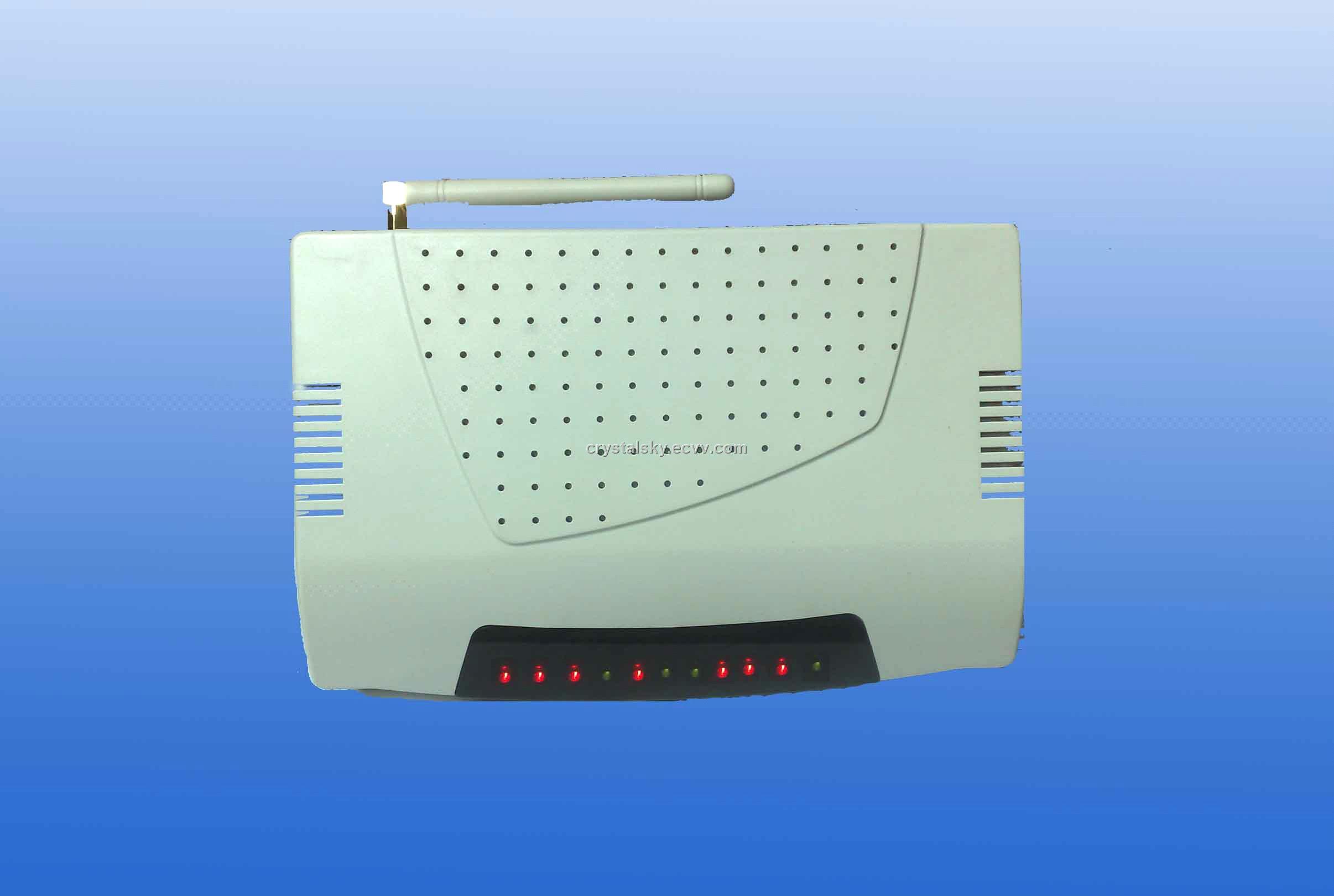

The alarm system is based on GSM network. With a GSM SIM card, it can be used wherever you want and no need to connect any wire, which is convenient and easy to install and use.
Specification:
a) GSM network frequency Standard: 900/1800MHZ, 850/1900MHZ optional
b) External power failure alarm: Start-time: less than 1s
c) Alarm response time Less than 10s (GSM in normality)
d) Power requirements: AC 220V 50Hz
Standby lithium battery: DC8.4V, 700/800mA, 4000mA optional
Standby battery working hours: more than 10 hours, 4000mA for over 3 days
e) Working conditions Operating temperature: -20 to 60℃
Humidity: 20% to 95%
f) Wireless frequency 315/433MHZ
g)Net Weight ::0.8kg
Gross Weight :0.9kg
h) Dimensions :218mm (length) × 147mm (width) × 39mm (thickness)
Main functions,
1.English language SMS and voice reminder, Spanish/Chinese/Russian for optional
2.With Partial arm function
3.With 2 wired zones, 12 wireless zones
4.With 3 Relay output to control your home appliances
5.With voice reminder when users operate the system
6.Work with external Microphone
7.Work with external speaker
8. Auto send SMS to remind users when GSM signal becomes weak
9.Work with wired & wireless PIR, door/window sensor, smoke/gas detector, glass break sensor etc.
10.Each wireless zone can match countless wireless sensors.
11.Users pre-record voice in the system and play the voice when system gives alarm 12.Send SMS to 3 mobile phones and auto-dial 3 phones to inform the users
13.Users use any phone to listen what is happening inside the house whenever & wherever.
14.Program and control the system by keyboard, remotes, SMS or phone remotely.
15.Send SMS to inform users which zone is alarming and will call users or the police after system is triggered
16.Use SMS to change the zone name & content
17.Use SMS to inquiry the system status wherever
18.With password protection, System will inform users when input wrong password for 3 times
19.Use any phone to call the system and anyone inside the house -can talk to you through a speaker.
20.Wireless Emergency function (24 hours zone)
21.With Backup rechargeable battery, system can work even when the power is failure or cut by intruder.
22.Send SMS to inform you when the power is failure or returns to normal.
23.Support monitoring center through GSM network to the police station or management centre
Packing List:
Main panel
Magnetic Door Sensor
Two Wireless Remote Controls
Wireless Programming Keypad
PIR Motion Sensor
Mini Siren
12vDC Power Supply
User Manual
| Place of Origin: | Guangdong in China |
| Model No: | CSG11 |
