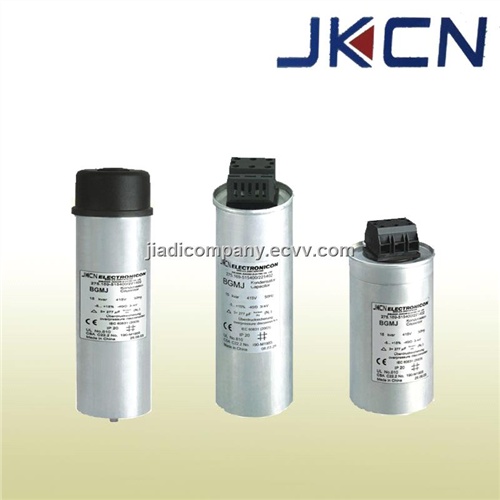

Brand of self-healing type low voltage shunt capacitor, made of the advanced metallized film, is produced strictly in accordance with the National Standard and IEC Standard by the introduced advanced foreign techniques and equipment. The device is mainly suitable for low voltage electric net work to imporve power factor, reduce reactive loss and better the voltage quality.
Main Technical Characteristics:
1, Service conditions: Ambient temperature-25centigrade~45centigrade, humidity≤85%, and altitude lower than 2000m.
2, Rated voltage: 250VAC, 400VAC, 525VAC, 750VAC, 1050VAC.
3, Rated output: 1~25kvar.
4, Capacitance Tolerance: 0~+15%/
5, Tangent of the loss angle: With the power frequency rated voltage, tg≤0.1% at 20centigrade.
6, Withstand voltage: Capable of withstanding 1.75 times of rated voltage between poles for 10s, R≥100MΩ.
7, Max allowable voltage: 1.10 times of the rated voltage.
8, Max allowable current: 1.30times of the rated current.
9, self-discharging charateristics: Apply√2 Un DC voltage to the device and switch off the power supply for 3m, ad then the residual voltage is 50V or less.
10, Standard: In conformity with GB12474-1991, IEC 831-1988.
| Place of Origin: | Zhejiang in China |
| Model No: | BGMJ-A |
| Brand Name: | JKCN Power Capacitor |
| Other Price Terms: | Our other price terms are negotiable. |
| Payment Terms: | L/C,T/T(Bank Transfer), |
| Minimum Order: | Piece/Pieces 500 |
| Package: | we can package our products according to customers' requirements. |
| Delivery Time: | we delieve on time or according to L/C |
