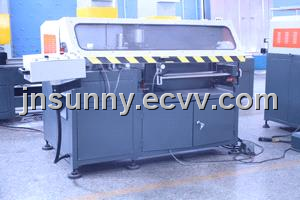

Aluminum Door & Window Corner Connector Automatic Cutting Saw LJMJ-420A

Mainly used for corner connector of aluminum profile cutting Machine Features: Linear bearing motion pair gives less resistance force and ensures high processing accuracy. Specialized main shaft ensures stable performances of equipments. Imported carbide saw blade gives accurate processing and high endurance. Outputting finished products automatically. Digital display of the cutting size and cutting quantity. Automatic cutting proless after one clamping.Features high automation,reliability and efficiency.　

Technical Parameter:

Air pressure:                                                              0.5-0.8MPa

Air consumption:                                                        200L/min

Input voltage:                                                              380V 50HZ

Diameter of cutter:                                                     420mm

Saw blade feeding speed:                                       0-3m/mm

Feeding length:                                                          0-600mm

Speed:                                                                          2800rpm
