Chain Block

Detailed Product Description

Chain Hoist Features:

Five prominent features in design and service are inherent in HSZ Series Chain Block.

1 It is safe and reliable in operation with minimum maintenance.

2 Chain hoist has high efficiency and small hand pull.

3 Chain hoist has small net weight and is easy to be handling.

4 Chain hoist has fine appearances with small size.

5 Chain hoist is durable in service.

Dominant features:

1，With triangle shape which is hard and have compact structure.

2，The chain adopts G80 alloy steel and the surface uses quench method and carbon black treatment, so the chain has good toughness and tensile resistance.

3，The hook is hard and has good toughness.

Specifications:

Model			HSZ-0.5V	HSZ-1V	HSZ-1.5V	HSZ-2V	HSZ-3V	HSZ-5V	HSZ-10V	HSZ-20V
Capacity		T	0.5	1	1.5	2	3	5	10	20
Standard Lift		M	3	3	3	3	3	3	3	3
Running test load		KN	6.3	12.5	18.8	25	37.5	75	125	250
Effort required to lift max. load		N	231	309	320	320	360	414	420	420×2
Load chain dia		MM	5	6	7.1	8	7.1	9	10	10
No. of columns of load chain			1	1	1	1	2	2	4	8

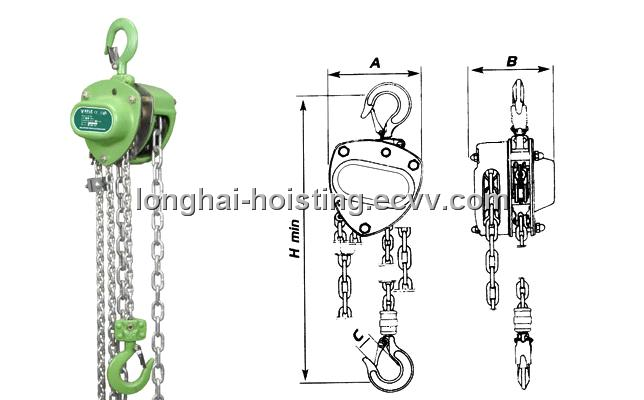

Dimensions	A	MM	115	143	148	152	148	181	181	192
	B	MM	136	156	182	198	182	266	365	630
	C	MM	270	317	399	414	465	636	798	890
	D	MM	25	27	34	36	38	48	57	84
Net weight		Kg	7	11	17	18.5	24	40	78	162
Extra weight per meter of extra lift		Kg	1.5	1.8	2.1	2.3	4.2	4.6	9.8	19.6

Place of Origin:	Shandong in China
Payment Terms:	T/T(Bank Transfer),
