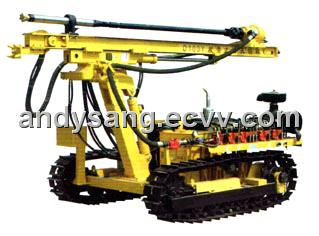

CTQ-D100Y DTH drill rig

CTQ-D100Y DTH drill rig

Characteristics:

Strong and reliable power

It uses diesel-powered as the power. Traction power is strong, climbing ability is forceful. The whole vibration is small and it works steady. It adopts the secondary filter ,which  cleans up the  working environment of the diesel engine, reduces the failure rate, extend the service life of the diesel engine.

Flexible drilling arm

It adopts active drilling  arm.. By controlling the expansion of the fuel tank it  can adjust the obiquilty of  the drilling holes and the height of the level holes, expanding the scope of the drilling and increasing  the adaptability of the product.

Reliable pump group

It adopts two independent  gear pump to supply oil.So it works  reliably and it is adaptable. Besides,it is easy to maintain.  The adoptment of gear transmission and  the soft features makes its structure compact.And it also makes it work steadily.

.

Reliable hydraulic system

It adopts exclusive  hydraulic components,which enhances the stability and reliability of the system..It adds up the oil cooling device in order to eliminate the impact to the system through the hydraulic oil heating .

Tech parameter:

The rigidity of the rock:  f=6-20

The diameter of the drill(mm):  80-140

The depth of the economical drill(m):  20

The work air pressure(Mpa):  0.7-1.4

The speed of  turning  around(rpm)  :0-65

The  advancing  power(KN): 15

The drill pipe specification(mm) :        60×2000/60×3000

The climbing slope capability: 30°

The clearrance off the land(mm): 254

The  walking  speed(km/h)  2.0

The lift angel of the drill arm: 30-60°

The oscillation angel of the drill arm: __

The oscilation of the carriage:  -11.5°- 36.5°

The pitching of the carriage: -118.5°- 23.5°

The  compensation of  the  carriage(mm): 900

The size of the appearance(mm): 5100×2030×1970

The weight of the whole machine(kg): 3000

Remakk: Gas-liquid linkage
