CNC Router

Detailed Product Description

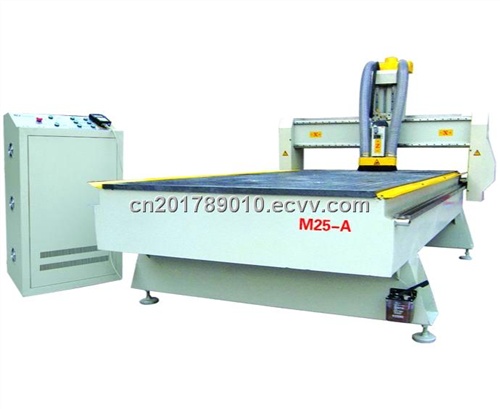

CNC Router Wood Engraver for Export_M25-A

/Equipment Features/

well-known air cooling spindle(optional),high precision, long life time, steady working, easy to start up.
Thicken square pipe structure, well welded, no distortion for whole structure.
Adopt imported square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
DSP controller system with USB interface, working without connecting with computer during working and easy to control.
Software: CAD/DAM designing software e.g. Type3/ARTCAM/Castmate/wentai etc.
Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials. Options for vacuum pump: vacuum pump made in china or No-oil vacuum pump made in Germany. Auto-oiling system(optional). Easy to operate by pressing one key.
Adopt high speed stepper motor and drivers, and two motors for Y axis. Max speed is 35M/MIN.Auto Aligning System.

/Technical-parameters/

Model	M25-A	Option
XY working area	1300*2500mm	＜2000mm×4000mm
Z working area	200mm	＜450mmm
Table size	1480×3000mm
Max feeding	＞35m/min
Work-holding	by suction
Processor	DSP/Frequency100MHz
Interface	USB
Command	G code.u00.mmg*.plt
Surroundings for software	DSP
Power(not include the spindle)	1840W
Power	AC 380V/50Hz
Main axle power rate	4.5KW	3/3.5/6KW
Main axle rotating speed	0-18000 rpm/min
Work Mode	Stepper	Servo
