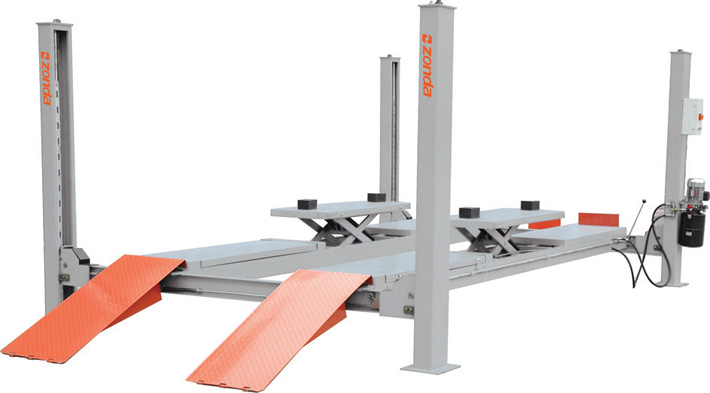

4 Post Wheel Alignment Car Lift (ZD-QJY3.5FB)
| Supply Ability: | 300 Set(s) per Month |
|---|---|
| Shipping: | within 3-4 weeks after order confirmed |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | In Plastic film in foam |
Quick Details
- Warranty: 1Years
- Brand Name: Zonda Zhongda Zonyi
- Lifting Capacity: 4 tons
- Type: Double Cylinder Hydraulic Lift
- Design: Four Post
Specifications
Instruction:
1.International standard design in conformity with CE standards.
2.Anti-slip platform,distance adjustable to accommodate different vehicles.
3.the hydraulic cylinder is inside the fixed platform and is thus perfectly protected.
4.Safety systems against cable breakage,against obstacles during descend.
5.Connected steel cables to force the synchronized moving of platforms.
6.Secondary hydraulic jack for wheel free.
7.Equipped with sideslip plates and spaces for turntables for 4-wheel alignment.
ZD-QJY3.5FB-1 model with Italian pump station, Chinese hydraulic cylinder.
ZD-QJY3.5FB-2 model with Chinese pump station, Chinese hydraulic cylinder. (Italian cylinder optional)
3.the hydraulic cylinder is inside the fixed platform and is thus perfectly protected.
4.Safety systems against cable breakage,against obstacles during descend.
5.Connected steel cables to force the synchronized moving of platforms.
6.Secondary hydraulic jack for wheel free.
7.Equipped with sideslip plates and spaces for turntables for 4-wheel alignment.
ZD-QJY3.5FB-1 model with Italian pump station, Chinese hydraulic cylinder.
ZD-QJY3.5FB-2 model with Chinese pump station, Chinese hydraulic cylinder. (Italian cylinder optional)
Technical Parameters:
Zonda 4-post car lift,CE certified, with wheel alignment function, stable performance, and high safety.
3.5 Ton 4-post hydraulic car lift, Italian pump station, Chinese cylinder
CE, ISO Certified
Lifting capacity: 3500kg
Total lifting height: 2000mm
First lifting height: 1550mm
Secondary lifting height: 350mm
Min. Height: 200mm
First raising time: 50-80s
First lowering time: 48-58s
Secondary raising time: 10-20s
Secondary lowering time: 11-25s
Drive-thru distance: 2900mm
Net weight: 1350Kg
Motor power: 2.2kw/3kw
Power supply: 380v, 220v
