UK Terminal Block

Supply Ability: 5,000,000 Piece/Pieces per Week
Shipping: 7days-30days
Payment Terms: L/C, T/T, Western Union
Update Time: 2015/1/6

Related products from verified members

Place of Origin: Zhejiang in China
Packaging Details: packing into standard export carton

Specifications

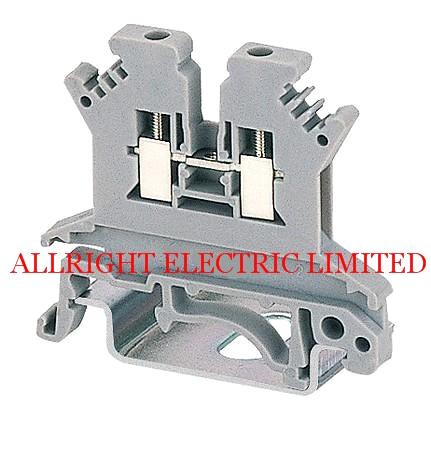

UK series combined terminals adopt frame type screw connection structure. Complying with IEC60947-1, GB14048 standards, our terminal blocks are widely used in the circuit of AC 50Hz (60Hz), rated voltage 660V, DC 440V and below, rated sectional area 0.75~150mm2 connection conductor. It's also suitable for connecting the circle copper conductor of terminal that is not specially processed of pressure welding.

Characteristics:
Reasonable installation structure design, wide general-purpose nature, used on both G type an TH type DIN rail. If under 50mm2, it adpots fasten accessory installation.

Small size, complete set of specification, big connected conductor sectional area and good electrical conductivity. The one that is below 50 mm2 adopts copper press line frame and copper fasten screw and others adopt copper press line frame and steel screw and copper skirt plate. It has large tightening torque and self-locking function.

The strong combined function makes the connection of conductors simpler.

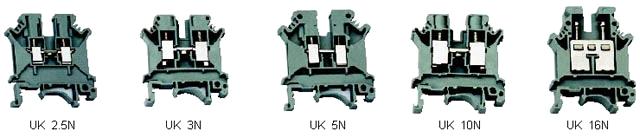

UK Terminal Block



Model
Hard Wire (mm2)
Soft Wire (mm2)
Rated Current
(A)
Rated Voltage
(V)
Dimension
(mm)
UK2.5B
0.2-4
0.2-2.5
32
690
6.2 x 42.5 x 42
UK3N
0.2-4
0.2-2.5
32
800
6.2 x 42.5 x 42
UK5N
0.2-6
0.2-4
41
800
6.2 x 42.5 x 47
UK6N
0.2-10
0.2-2.5
57
800
6.2 x 42.5 x 47
UK10N
0.5-16
0.5-10
76
800
10.2 x 42.5 x 47
UK16N
2.5-25
4-16
101
800
12.2 x 42.5 x 54
UK35N
0.75-50
0.75-35
150
1000
15.2 x 50.0 x 62
UKH50
16-50
25-50
150
1000
20 x 70.5 x 83.5
UKH95
25-95
35-95
232
1000
25 x 83 x 97.5
UKH150
35-150
50-150
309
1000
31 x 100 x 118.5

Model
Hard Wire (mm2)
Soft Wire (mm2)
Rated Current
(A)
Dimension
(mm)

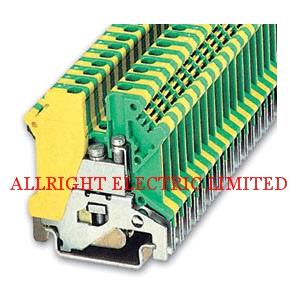

USLKG2.5
0.2-4
0.2-2.5
32
6.2 x 42.5 x 42
USLKG3
0.2-4
0.2-2.5
32
6.2 x 42.5 x 42
USLKG5
0.2-6
0.2-4
41
6.2 x 42.5 x 47
USLKG6N
0.2-10
0.2-2.5
57
6.2 x 42.5 x 47
USLKG10N
0.5-16
0.5-10
76
10.2 x 42.5 x 47
USLKG16N
2.5-25
4-16
101
12.2 x 42.5 x 54
USLKG35N
0.75-50
0.75-35
150
15.2 x 50.0 x 62
USLKG50
16-50
25-50
150
20 x 70.5 x 81.5
