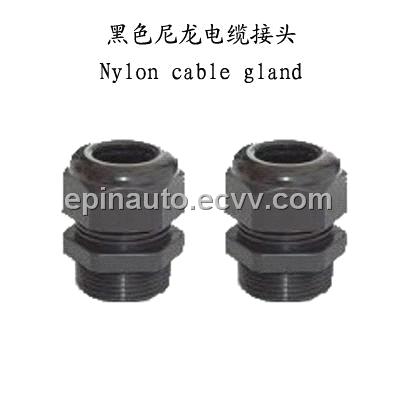

Black Nylon Cable Gland

Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	2 weeks
Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	standard

Specifications

Nylon cable glands & accessories.

Product Overview

Our range of high quality nylon cable glands can be used in a wide range of applications when connecting electrical cable to electrical equipment. Nylon cable glands are quick and easy to install and are designed to cater for a wide range of cable sizes. A high quality gripping arrangement provides maximum cable protection against dust and water, and each gland requires no disassembly for cable installation, just insert the cable and tighten. The extended cable acceptance of each cable gland allows for greater reduction in stock inventory, therefore provides a more effective and efficient installation. Some applications include panels and enclosures, marine, industrial, power and utility, railway and telecommunications.

Cable Accessories range of Nylon cable glands for cable protection against dust and water are tested and certified to IP68 in accordance with AS1939-1990.

Standard nylon glands are IP68 protected and are available in black, white, grey and red. Halogen free. Metric and Pg versions.

Product Features

» IP68 degree of protection
» UL approved nylon 66, 94V-2 (Black)
» UV resistant in outdoor applications
» Indoor and outdoor applications
» Superior strain relief
» Operating temperature range of -40oC to 100oC
» Provides a positive seal on cable sheath

Selection sheet

PART NO. Thread	DIAMETER mm	CABLE RANGE mm	BOX QTY pcs/Box
MG12x1.5	12	3 - 6.5	100
MG16x1.5	16	5 - 10	50
MG20x1.5	20	10 - 14	35
MG25x1.5	25	13 - 18	20
MG32x1.5	32	18 - 25	20
MG40x1.5	40	22 - 32	5
MG50x1.5	50	30 - 38	5
MG63x1.5	63	34 - 44	5
