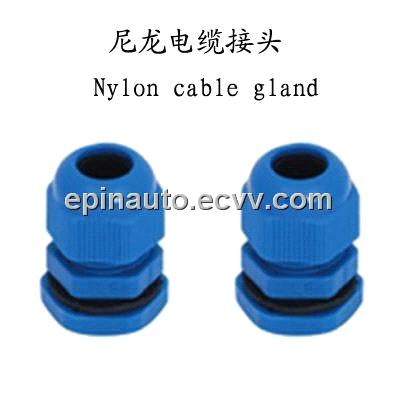

Extension Nylon Cable Gland

Supply Ability:	1,000,000 Piece/Pieces per Month
Shipping:	2 weeks
Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China

Specifications

M/PG Extension Type Plastic Waterproof Cable Gland

Material:
Adopting nylon PA66 certificated by UL
Weather strip:
Nitrile butadiene rubber (NBR), Weatheringresistance
rubber (EPDM)
Working temperature:
-40℃ to 100℃ in static state, instantaneous heat
resistance up to 120℃; -20℃ to 80℃ in dynamic
state, instantaneous heat resistance up to 100℃

Characteristics:
IP68(Rotate the part, and use O ring)
Color:
Black(RAL9005), light grey(RAL7035), as well as special colors
that can be designed at request.

Type	Cable Range (mm)	Thread O. D. AG (mm)	Thread Length GL (mm)	Spanner Size (mm)
M12 x 1.5	3~6.5	12	15	16
M12 x 1.5	2~5	12	15	16
M16 x 1.5	4~8	16	15	19
M16 x 1.5	2~6	16	15	19
M18 x 1.5	5~10	18	15	22
M18 x 1.5	3~7	18	15	22
M20 x 1.5	6~12	20	15	24
M20 x 1.5	5~9	20	15	24
M22 x 1.5	10~14	22	15	27
M22 x 1.5	7~12	22	15	27
M24 x 1.5	12~16	24	15	27
M24 x 1.5	10~13	24	15	27
M25 x 1.5	13~18	25	15	33
M25 x 1.5	9~16	25	15	33
M27 x 1.5	13~18	27	15	33
M27 x 1.5	9~16	27	15	33
M30 x 1.5	16~21	30	15	35
M30 x 1.5	13~18	30	15	35
M32 x 1.5	16~21	32	15	35
M32 x 1.5	13~18	32	15	35
M36 x 1.5	18~25	36	18	42
M36 x 1.5	13~20	36	18	42
M40 x 1.5	22~32	40	18	52
M40 x 1.5	20~26	40	18	52
M50 x 1.5	32~38	50	18	60
M50 x 1.5	25~31	50	18	60
M63 x 1.5	37~44	63	18	64
M63 x 1.5	29~35	63	18	64

Type	Cable Range (mm)	Thread O. D. AG (mm)	Thread Length GL (mm)	Spanner Size (mm)
PG7	3~6.5	12.5	15	16
PG7	2~5	12.5	15	16
PG9	4~8	15.2	15	19
PG9	2~6	15.2	15	19
PG11	5~10	18.6	15	22
PG11	3~7	18.6	15	22
PG13.5	6~12	20.4	15	24
PG13.5	5~9	20.4	15	24
PG16	10~14	22.5	15	27
PG16	7~12	22.5	15	27
PG19	12~16	24	15	27
PG19	10~13	24	15	27
PG21	13~18	28.3	15	33
PG21	9~16	28.3	15	33
PG25	16~21	30	15	35
PG25	13~18	30	15	35
PG29	18~25	37	18	42
PG29	13~20	37	18	42
PG36	22~32	47	18	52
PG36	20~26	47	18	52
PG42	32~38	54	18	60
PG42	25~31	54	18	60
PG48	37~44	59.3	18	64
PG48	29~35	59.3	18	64
