Home >Products Catalog > Film Shrink Packing Machine > Automatic Film Shrink Packing Machine / Wrapping Machine

Automatic Film Shrink Packing Machine / Wrapping Machine

Shipping:	25days
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Jiangsu in China
Packaging Details:	Wooden

Specifications

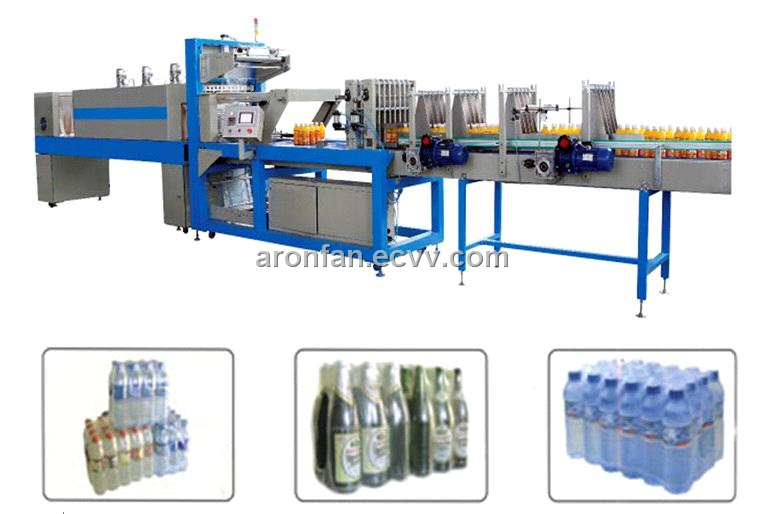

Automatic Film Shrink Packing Machine / Wrapping Machine

1. Specially designed and manufactured for the high-speed packing requirements of drinks(pure water, beverage, fruit juice and milk product).

2. During the product forward conveying process, it can automatically group the product into package, so as to save time and enhance packing efficiency.

3. Touch screen operating panel with user-friendly interface and convenient parameter setup, absolutely an easy-to-operate machine.

4. The ideal model of middle-speed heat-shrinking packager is the first choice in the market.

Technical Parameter:

Dimension for the whole unit	L11450mm× W1100mm× H2100mm
Thermal shrinkage passage dimension	L2400mm× W650mm× H450mm
Max. Package dimension	L600mm× W400mm× H350mm
Transfer belt wideth	550mm
Packaging speed	15-25Psc/min
Operating power supply/power	380v 35kw
Sealing and cut time/temperature	0.5-1s 180^oC-260^oC
Operating air pressure	0.6-0.8Mpa
Air consumption	0.6m³/minute
