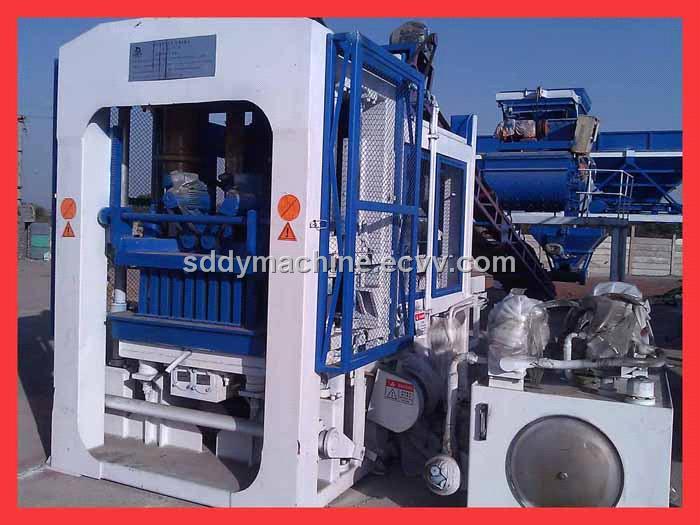

Block Forming Machine, Concrete Block Machine

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Model Number: QT4-15C
Brand Name: Dongyue
Packaging Details: suitable for ocean shipping
FOB Price: 25,000-30,000 USD/Set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other, according to clients' needs
Min.Order Quantity: 1 Set/Sets
Supply Ability: 100 Set/Sets per Month
Shipping: 25 days after receving the deposit
Update Time: 4/7/2014

Quick Details

  • Condition: New
  • Type: Hollow Block Making Machine
  • Processing: Brick Production Line
  • Method: Hydraulic Pressure
  • Automatic: Yes
  • Capacity: 4000pcs/8hours
  • Place of Origin: China (Mainland)
  • Brand Name: donyue
  • Model Number: qt4-15c
  • Voltage: 19.2KW
  • Dimension(L*W*H): 2800x1800x2550mm
  • Certification: CE,SGS,ISO9001
  • Warranty: 12 months
  • After-sales Service Provided: Overseas service center available

Specifications


Block Forming Machine, Concrete Block Machine(www,chinablockmachine,com)
 is applicable to a multi-purpose machine, it can produce a variety of standard bricks, hollow brick , paver blocks and so on.
Summary
1. Hydraulic and full automatic
2. German Siemens motor
3. Japanese Mitsubishi PLC
4. ISO, CE, SGS
1. Technical parameters

Dimension of host machine
2800× 1800× 2550mm
Host machine power
29.3 KW
Molding area
400× 800mm
Vibration force
40KN
Cycle time
15-25S
Mixer model
JS 500
The size of the pallet
1010× 550× 25mm
General water Consumption
4T/every day
Weight of the host machine
4.6T
Voltage
According to clients local voltage


Theoretical workshop area: 150m2, need about 6-7workers . The office, curing area and stacking area to arrange according your fact status..

2. Production capacity

Size(LxWxH)
Pcs/Mould
Pcs/ Hr
Pcs/ 8 Hr
400X100X200
8
1200-1920
9600-15360
400X150X200
6
900-1440
7200-11520
400X200X200
4
600-960
4800-7680
400X250X200
3
450-720
3600-5760
240X115X53
26
3600
28800

Paver: 200X100X60
16
1920
15360

Paver: 200X163X60
8
1200
9600

3. QT4-15C automatic block machine Production Line
No.
Item
Quantity
1, Batching system

01

Cement silo(Optional)

1 set
02
Cement scale
1 set
03
Cement screw conveyor
1 set
04
Batching machine (PL1200-B)
1 set
05
JS500 mixer
1 set
06
Belt Conveying Machine (6M)
1 set
07
Batching/mixing control system
1 set
2. Block making machine parts
01
QT4-15C Forming machine
1 set
02
Pallets Feeder
1 set
03
Brick Conveyor Machine
1 set
04
Hydraulic unit
1 set
05
PLC control unite
1 set
06
Block sweeper
1 set
07
One block mould
1 set
08
Hydraulic trolley
2 sets
09
spare parts and tools
1 set
3. Stacker
01
Automatic Stacker
1 set
4. Optional parts
01
Extra Block Mould

02
Paver block mould

01
Forklift(3T)

02
pallet(1010*550*25mm)
1500pcs

Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon for cooperating on our machine.
