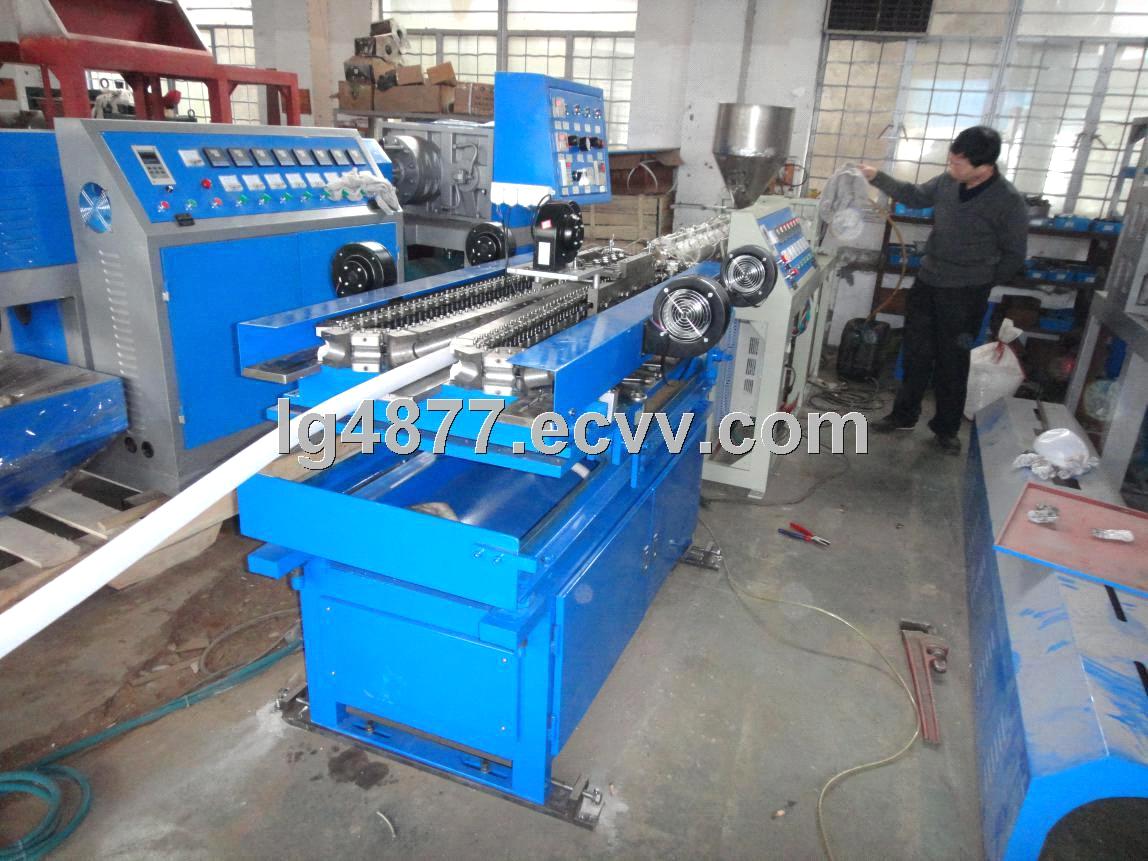

Plastic Corrugated Hose Making Machine

FOB Price:	15,000.00 - 30,000.00 USD/Set
Supply Ability:	300 Set/Sets per Year
Shipping:	30days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: one year
Certification: CE
Weight: 2T
Dimension(L*W*H): 9m*1.5m*1.8m
Power(W): 11-22
Voltage: 380/220V/415V
Model Number: GB-SJ65
Brand Name: GB
Production Capacity: 15m/min
Application: wire conduit
Pipe Material: PP/PE
Type: Pipe Production Line
Condition: New

Specifications

Corrugated Pipe making machine
Plastic corrugated hose machine
plastic corrugated hose making machine
plastic corrugated hose production line
PP/PE corrugated hose extrusion line

Single wall corrugated pipe making machine

Single wall corrugated pipe extrusion machine

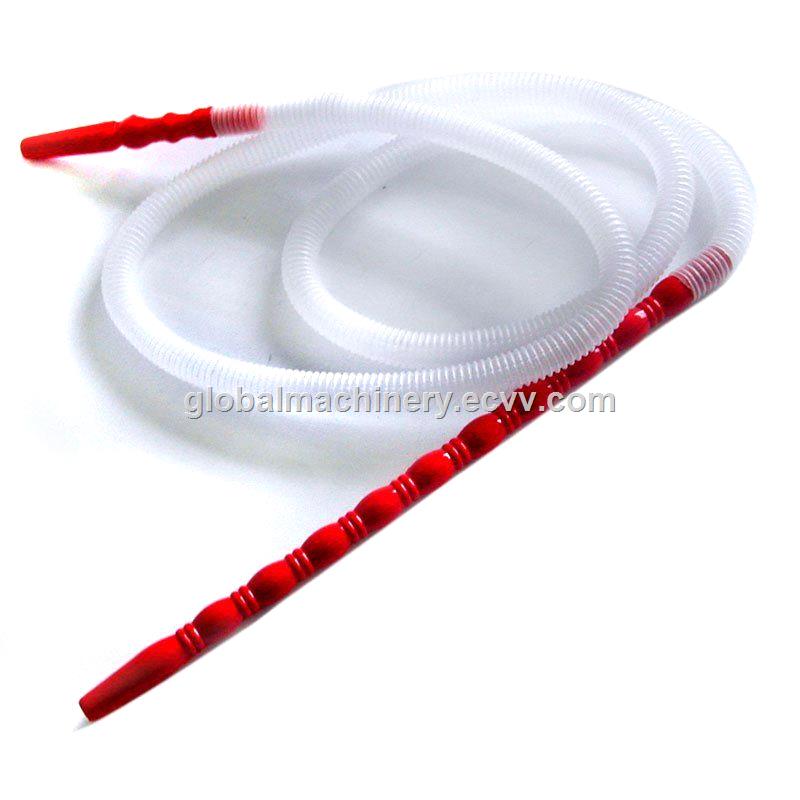

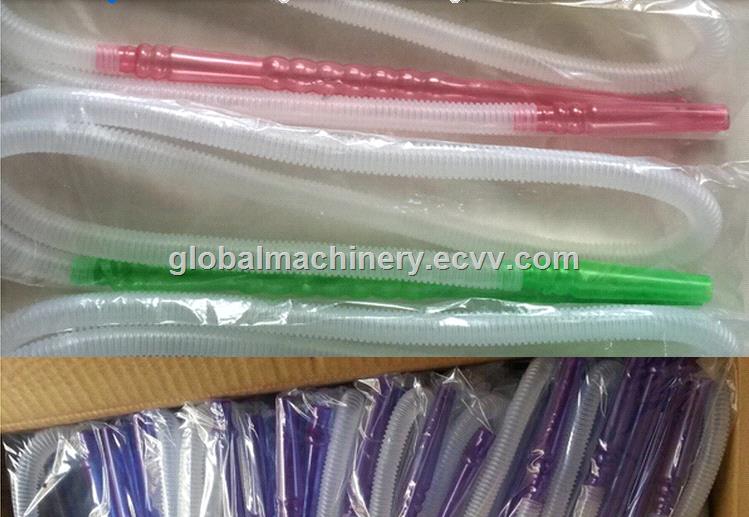

This corrugated pipe production line can be used to produce single-wall or one wall corrugated pipes of
PE, PP, PVC, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have
features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of
lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

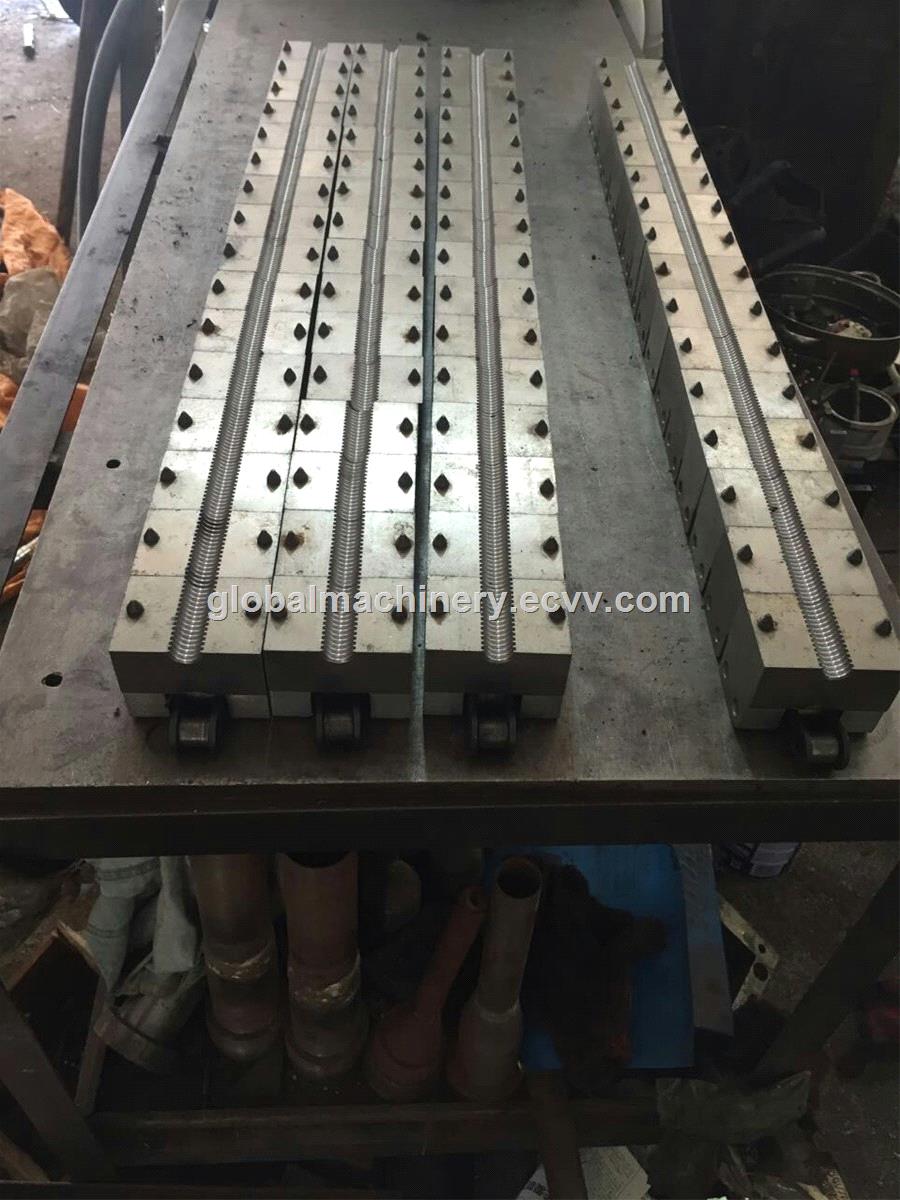

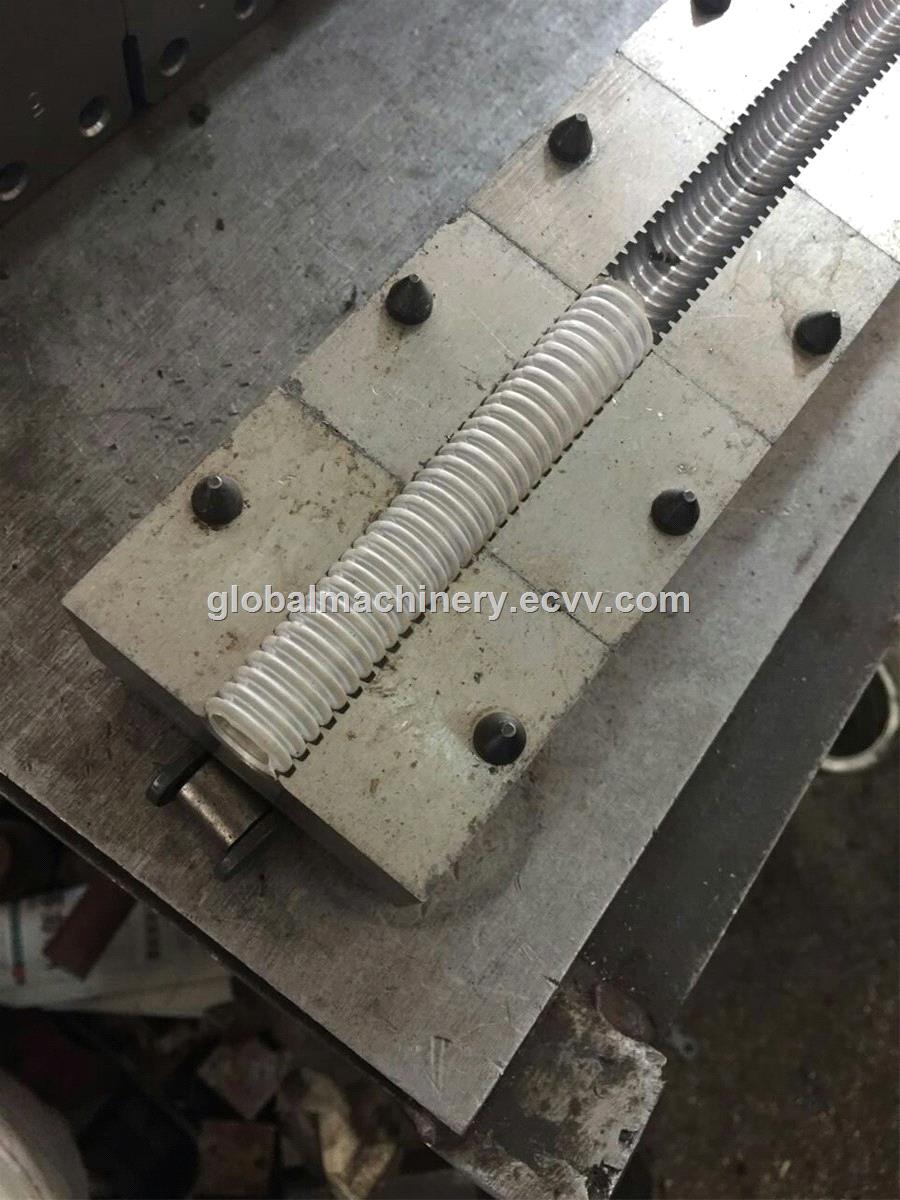

Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates
so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation,
smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of the up-market cars.

The main technique parameter :

Pipe diameter range(mm)	4.5-9	9-32	32-50	63-110
Main machine model	GB-SJ45	GB-SJ50	GB-SJ65	GB-SJ75
Main machine l/d	28:1	28:1	28: 1	28: 1
Production capacity kg/h	10	40	80	150
Main motor capacity kw	7.5	11	18.5	37
Moiding machine capacity kw	1. 5	1.5	2.2	6
Pair of mould	45	45	60	72
Cooling mode	Water cooling or fan cooling or both type
Production (m/min)	6-10	8-12	8-15	8-15
Metering mode	inducting mode
Coiling machine mode	Automatic or Manually-operated
