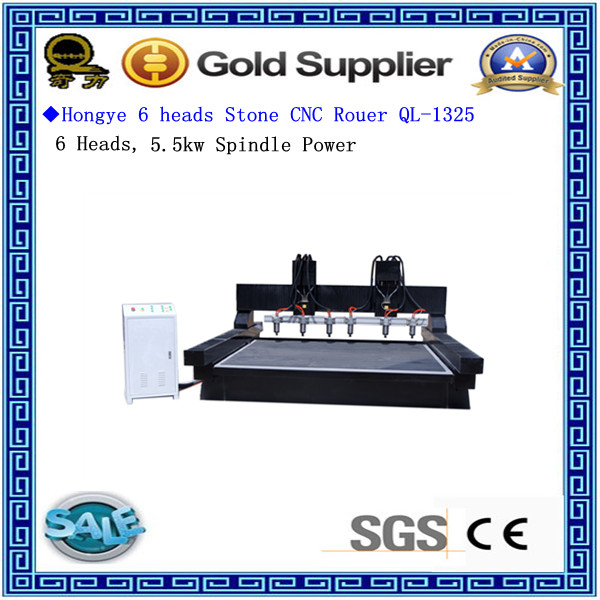

Jinan Stone Working CNC Router Marble Granite Milling CNC Machine

FOB Price:	5,000.00 - 5,500.00 USD/Set
Supply Ability:	150 Set/Sets per Month
Shipping:	qingdao
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Wooden case

Quick Details

Brand Name: ql
Model Number: 1325
Voltage: 380v
Power(W): 5.5kw
Dimension(L*W*H): 1300*2500
Weight: 1000kg
Certification: CE
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas

Specifications

Jinan QL series stone working cnc router marble granite milling machine

Product Features:

Heavy Duty Stone CNC Router. Overall structure is the most solid for large bearing capacity. With tool cooling system and water-and-dust proof on three axes, it is suitable for many kind of stone carving.

1. With the thick-walked square tube structure . That can load weighting up to one ton.

2. High-power spindle with high efficiency. Cnc router

3. Water-cooling system ensure the working effect . Cnc machine

4. Automatic oiling system ensure working accuracy and machine' s lifetime .

Standard Configurations:

1. Square Tube Lathe Bed with water tank

2. X Y with racks, all with square guides and dust cover

3. Axis Y with two motors

4.3.0 KW Spindle and Transducer and large Leadshine driver

5. NCSTUDIO System

6. Auto Lubrication System

7. Optional: DSP Control system

Technical Data
Working Area	According to demand
Table Size	According to demand
Max. Speed	> 20m/min
Clamping	By Suction
Processor	DSP/ Speed 100MHZ
Interface	USB
Command Code	G Code. u00. mmg*. Plt
Working Software	DSP
Power (not including spindle)	1840w
Working Voltage	AC380V/50HZ
Spindle Power	4.5kw
Spindle Running Speed	0-24000rpm
Motor	Stepper
