JIS Marine Valve Cast Steel Globe Valve 5k 10k 20k

FOB Price:	2.00 - 3.00 USD/Piece
Supply Ability:	5,000 Piece(s) per Month
Shipping:	Qingdao Port
Payment Terms:	T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	3-plywooden box

Quick Details

Brand Name: VG
Temperature of Media: Low Temperature
Material: Casting
Pressure: Low Pressure
Standard or Nonstandard: Standard
Model Number: F7311/F7313/F7317/F7319/F7340
Media: Water
Power: Manual
Structure: Stop

Specifications

JIS Marine valve Cast Steel Globe valve

Description;

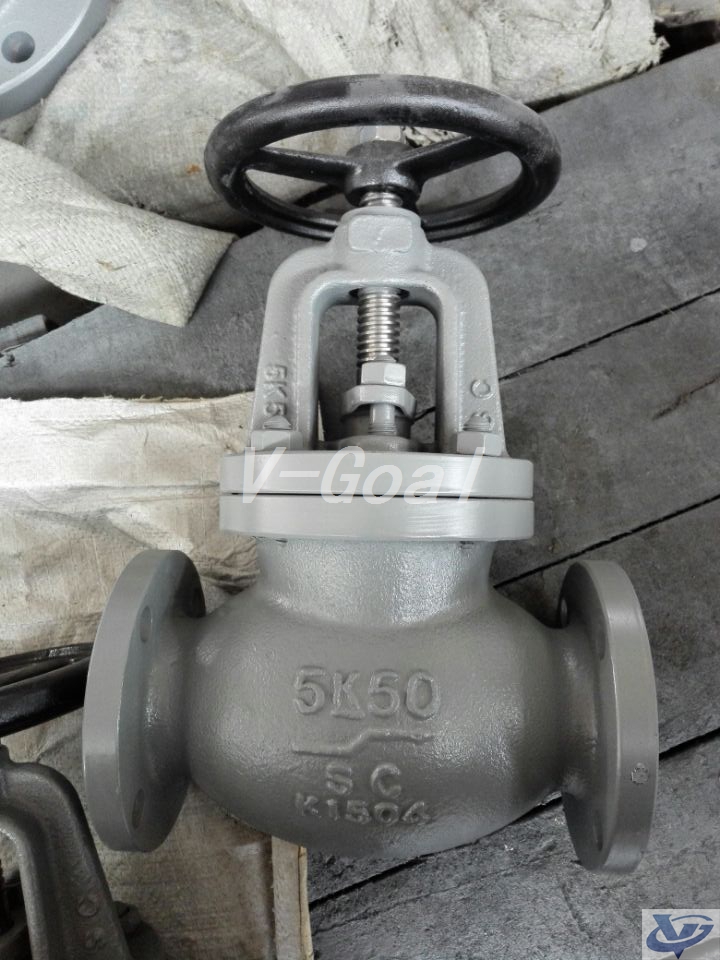

1)F7311-Marine Cast Steel 5K Globe valve

Nominal pressure; 5K(0.49Mpa)

DN 50, 65,80,100,125,150,200,250,300

2)F7313-Marine Cast Steel 20K Globe valve

Nominal pressure; 20K(2.0Mpa)

DN 32, 40, 50, 65,80,100,125,150,200,250

3)F7317-Marine Cast Steel 40K Globe valve

Nominal pressure; 40K

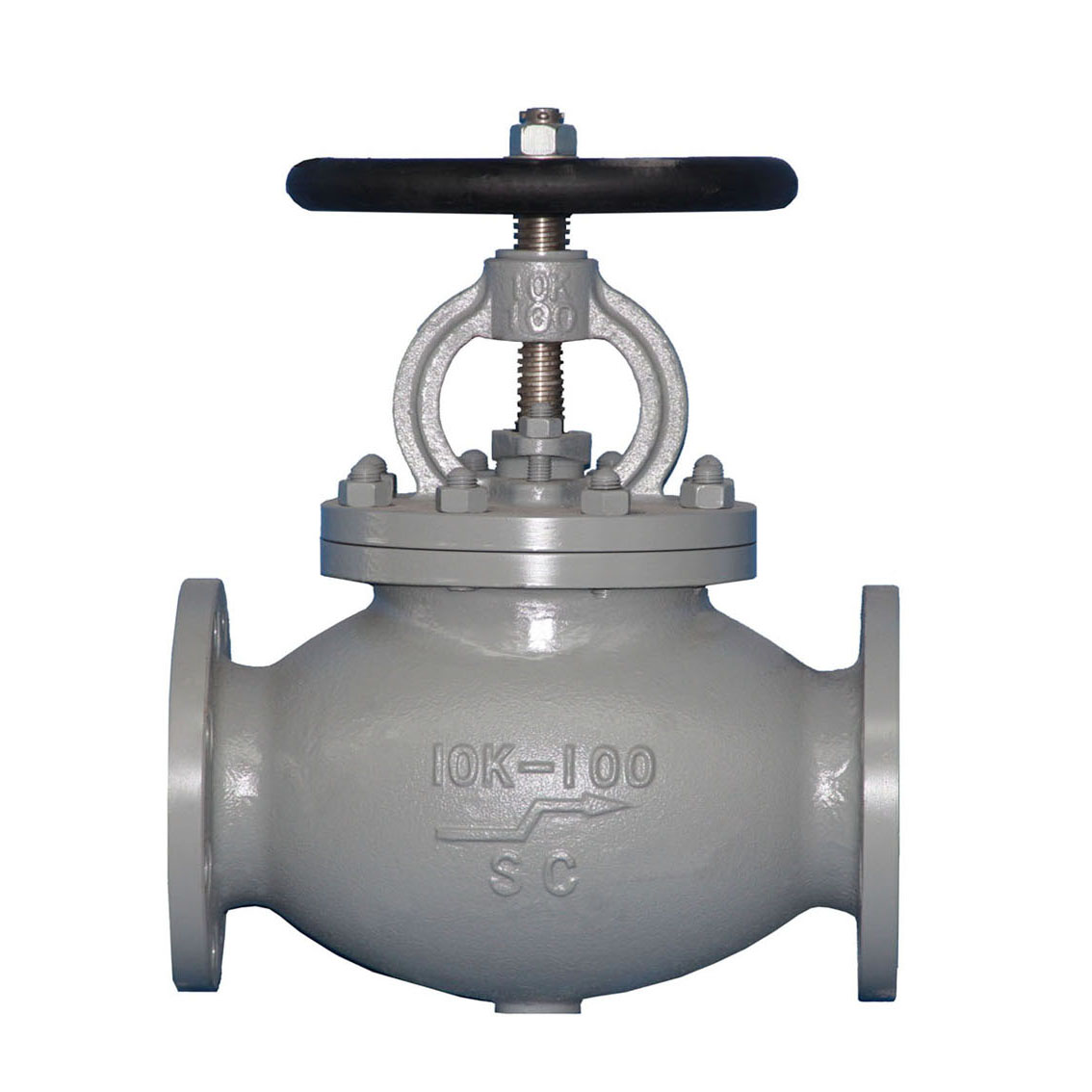

4)F7319-Marine Cast Steel 10K Globe valve

Nominal pressure; 10K(0.98Mpa)

DN 50, 65,80,100,125,150,200,250,300

5) F7340-Marine Cast Steel 30K Globe valve

1.End Type; Flange

2.StraightType

3. Main material;

Body/Bonnet;SC450;

Disc/Valve seat/ Gland packing; BC6; or brass or Stainless Steel 2CR13 or 1CR13

Stem; Brass C3771BD; or Stainless Steel 2CR13 or 1CR13.

Gasket; Non-asbestos;

Hand-wheel; FC200

4.Application;Sea water piping, fresh water piping, oil piping and steam piping.

5.Function:Such valves are used for on-off duty and regulating the flow rate.
