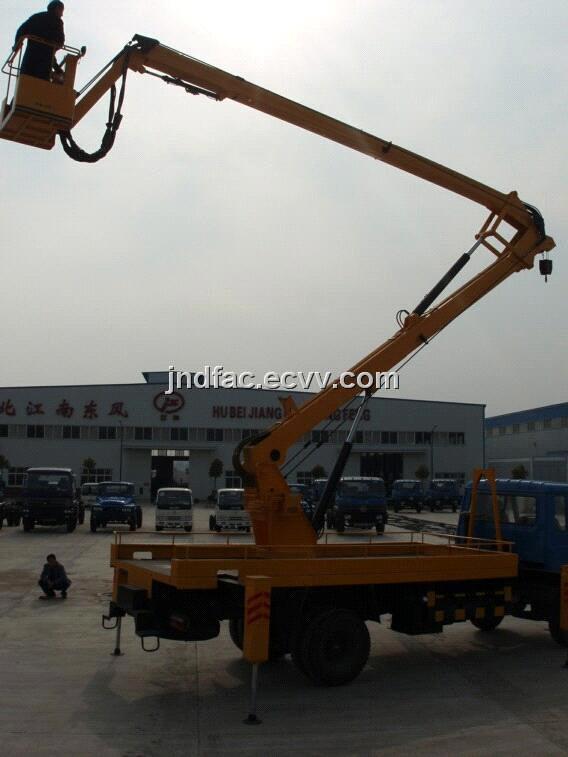

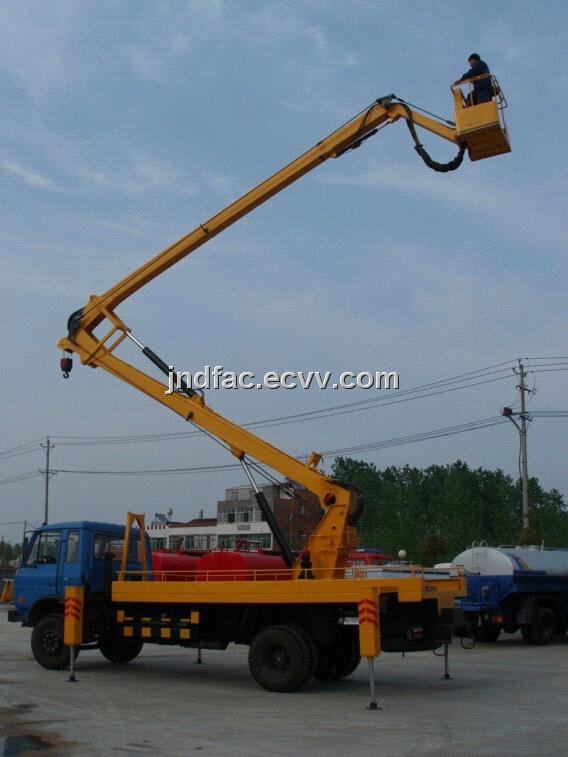

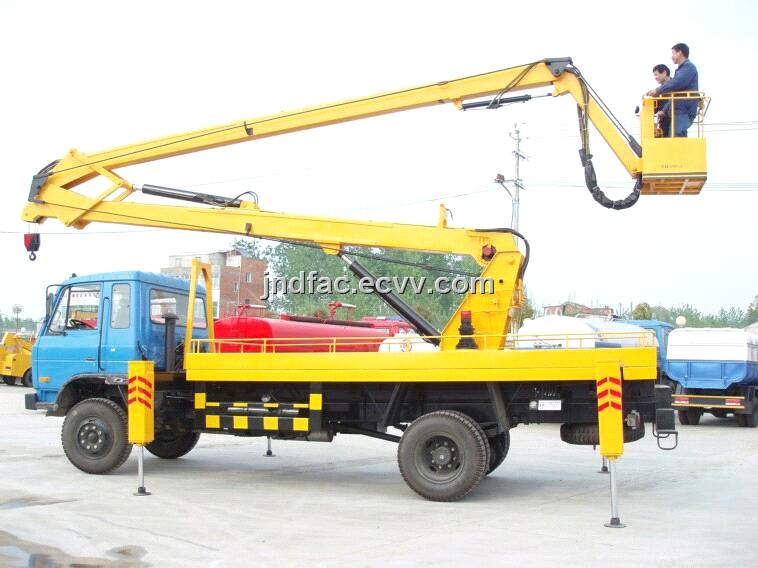

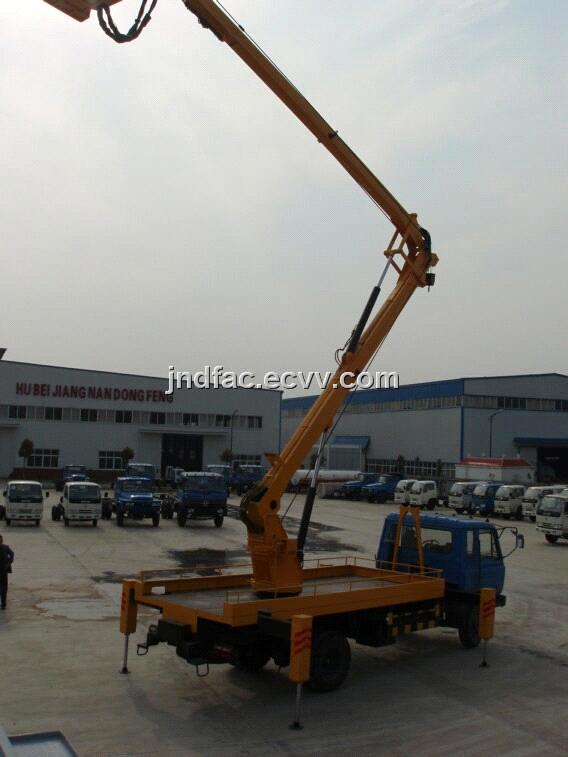

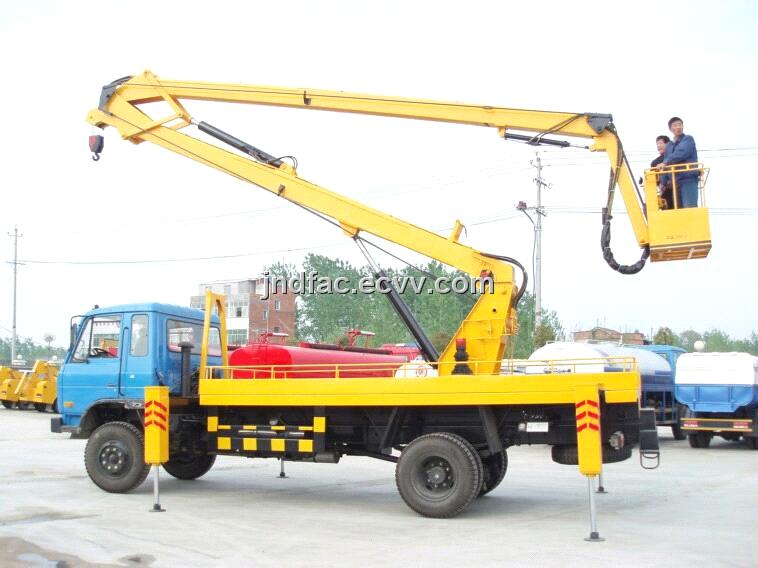

20M Dongfeng Manlift Truck

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hubei in China
Model Number: JDF5110JGKDFL
Brand Name: jiangte/jdf
Packaging Details: waxed
FOB Price: 60,000-65,000 USD
Payment Terms: L/C, T/T, Western Union
Min.Order Quantity: 1 Set/Sets
Supply Ability: 20,000 Set/Sets per Year
Shipping: Bulk or roro shipment
Update Time: 3/28/2013

Specifications

20M DongFeng Manlift Truck
1. Cummins engine
2.3 section of articulated booms, 4 outriggers
3. Equipped with hook
4. CCC

Brand
Jiangte

Vehicle name
20M DongFeng Aerial Platform Truck
Engine model
B170 33
Engine make
DongFeng Cummins Engine
Engine displacement(ml)
5900
Engine power(kw)
125
Overall dimension(L*W*H)(mm)
9400× 2498× 3790

G.. V. W. (Kg)
10950

Curb weight(kg)
10755
Payload weight(kg)

Approach/Departure angle
20/12
Front/Rear suspension
1430/2960
Wheelbase(mm)
5000/4700
Axle load
4320/6630
Axle number
2
Leaf spring
7/9+6,8/10+8
Tire number
6
Tire size
9.00-20,10.00-20
Front track
1880
Rear track
1800
Chassis model
DFL1120B
Upper load parameter
Max working height
20m
Max bucket floor height
18.3m
Max work radius
8.4m
Bucket load
200kg
Hook load
Optional , Hook load capacity 1Ton
Traffic warning light
Optional
Boom type
3 section of articulated boom, 360° rotation
Outriggers
4Pcs , H type
