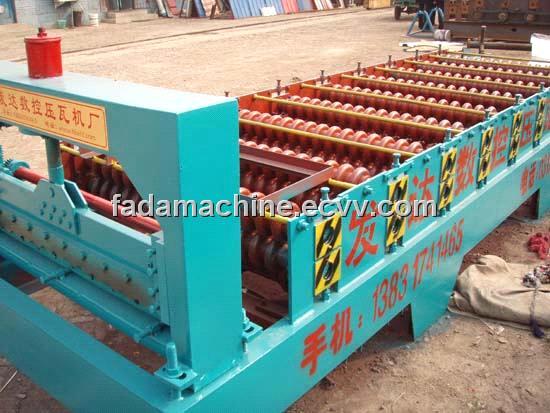

850 Corrugated Tile Forming Machine

In Stock

Inquiry Now

Export Markets:	North America, South America, Africa, Mid East
Place of Origin:	Hebei in China
Packaging Details:	fit for shipping ocean

Specifications

Corrugated Machine

1.1Type: 13-65-850 Corrugated Tile Forming Machine

1.2Feeding width: 710 milimeter

1.3Effective width: 710millimeter

1.4Suitable to press: galvanized sheet, coated color sheet.

1.5Thickness of sheet: 0.3-0.8mm

Decoiling--Feeding--Forming— cutting— Production— off-discharging

3.1Coil inner diameter: 508± 30mm

3.2Max coil width: 710-1250mm

3.3 Carrying capacity: 3000kg

4.1Shaft material: 45# steel; Roller diameter: 70mm

4.2Roller Material: 45# steel

4.3Axis of roller: 9groups

4.4Chains transport: 1inch

4.5Forming Speed: 8-12m/min

4.6Main motor power: 3KW

5.1Hydraulic shearing

5.2Blade material: Cr12 steel with quenched treated 60-62° C

5.3Cutting system: Adopt hydraulic drive, automatic cutting after forming, no distorting and wasting, high level safety factor.
