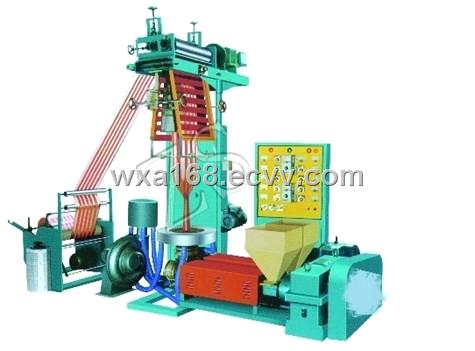

Striped Film Blowing Machine

FOB Price:	6,000.00 - 15,000.00 USD/Set
Supply Ability:	100 Set/Sets per Quarter
Shipping:	Ningbo Sea Port
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Wooden Box

Specifications

> > Striped Film Blowing Machine Major Features & Function:

The film extrusion machine is used for blowing various low density polyethylene (LDPE) and high density polyethylene(HDPE) color striped plastic film, etc. Which are widely used for packing food, fruit, garments, textile, daily necessities and other civil and industrial products. The cylinder and the screw stem of Model SJ-45D× 2 extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. 600 auxiliary machine can be freely adjusted within the limits of 600mm according to the technological requirements of different materials, and has been fitted with a plug-in plate mechanism for making vest bag. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

> > Major Technical Parameters:

Tape	SJ-45D× 2	SJ-50D× 2	SJ-55D× 2
Diameter of Screw	φ 45× 2	φ 45× 2	φ 45× 2
Max. Width of Folded Film (mm)	100-600	200-800	300-1000
Single-face Thickness of Film(mm)	0.01-0.10	0.01-0.10	0.01-0.10
Max. Extrusion(kg/h)	35	50	65
L/D	26:1	26:1	26:1
Power of Main Motor(KW)	15	18.5	22
Power of Traction Motor(KW)	1.1	1.1	1.5
Heating Power(KW)	15	18	25
Overall Dimension (m)	4.8× 1.9× 4.1	5.5× 2.1× 4.7	6.5× 2.3× 4.9
Weight(T)	2T	2.5T	3T
