Bunsun Electronics Co., Ltd.
China Manufacturer with main products: LCD, LCM, LCD Display, LCD Module, Tn LCD, Stn LCD, Fstn LCD, TFT LCD |

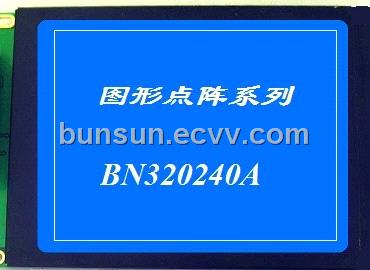

5.7 inch LCD module Grpahics LCD STN module
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Key Specifications/Special Features:
320 x 240COB character LCD module
Overall dimension: 160 x 109 x 13.5/15.5mm (max.)
Viewing area: 121.0x 93.0mm
Transflective polarizer type (optional for reflective/transmissive)
Bottom LED backlight (optional for side LED/EL backlight)
Yellow green backlight color (optional for white/blue/red/amber colors)
LCD STN yellow (optional for LCD TN/HTN/STN gray/STN blue/FSTN)
Viewing angle: 6:00 o'clock (optional for 12:00 o'clock)
Standard temperature range (optional for wide temperature)
English-Japanese fonts (optional for Russian/European/Cyrillic/Hebrew fonts)
Parallel interface
Applications:
Communications, marine, industrial, instrumentation, medical equipment, consumer, office equipment, white goods, consumer electronics, telecommunication devices, household appliances, office automation, IT products, and industrial meter display, such as digital multimeter, electronic dictionary, remote control, mobile phone, calculator, fax machine, CD, DVD players, and MP3 players
Customized LCD panels and LCD modules in many, configurations TN, STN, FSTN, COB, COG, TAB, CSTN, and TFT LCD modules
Customized alphanumeric LCD modules-dot-matrix LCD moduless-graphics LCD modules-TFT LCD modules
Different structure LCM: COG, TAB, COB, SMT, heat seal, maximum driving duty 1/240, and minimum dot gap 20μm
Different LED, EL, CCFL matched with LCD&LCM as well as standard or custom design touch panel (digital/stimulant
