Steel H/I Beam CNC Plasma Cutting & Drilling Machine

Supply Ability: 10 Set(s) per Month
Shipping: 60 working days
Payment Terms: L/C, T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: standard export case

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 year
  • Certification: ISO9001,CE
  • Brand Name: JEESUN
  • Condition: New
  • Rated Power: upon actual model
  • Voltage: 380V
  • Model Number: XG series
  • name: Steel H/I Beam CNC Plasma Cutting and Drilling Machine
  • profile type: H/I beam, channel steel, angle steel, etc

Specifications

Steel H/I Beam CNC Plasma Cutting and Drilling Machine
steel HI beam and steel tube cnc plasma cutting robot machine

Introduction:

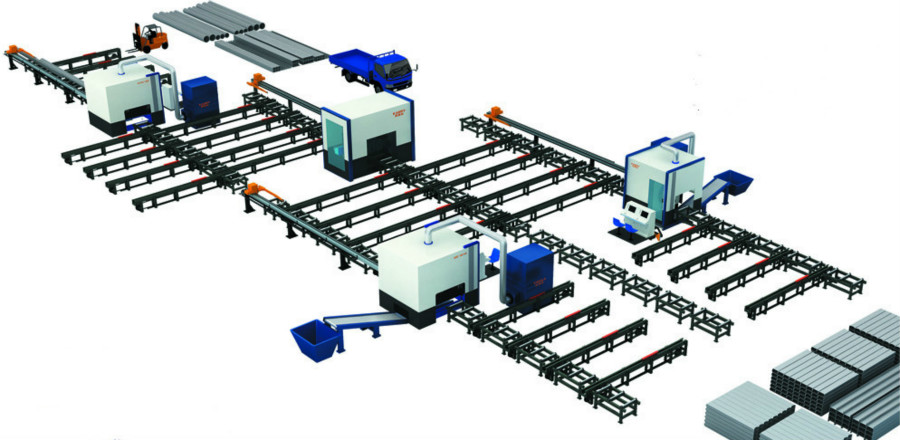

this h beam CNC plasma cutting production line is used for cutting of different profiles, including h beam, I beam, Channel steel, angle steel, etc, it is mainly composed of storage rack, conveying roller bed, feeding trolley and trolley tracks, cutting unit, discharge units, finished rack, dust removal device, console station etc. Several beam profiles can be placed on storage rack when working, the beam will be conveyed through roller bed to the cutting station, then discharged after cutting, it is characterized of high automation, easy operation and advanced cutting function, improving the working efficiency and saving the staff cost



Features and advantages:

1. Lateral positioning method to ensure no cutting blind area of the beam profile.

2. the hydraulic pressing device is installed for horizontal clamping, which prevents the thermal distortion during cutting.

3. There are laser detection device on the robot, which can detect the deformation of the work-piece and make the robot to compensate to ensure the cutting precision.

4. There is anti-collision device on the robot to protect cutting gun and robot.

5. the cutting cabinet is well sealed and is connected with dust removal device, no smoke leakage occurs.

6. Scrap trolley is electrically controlled and manual push-pull is not necessary.

7. the feeding trolley is composed of mechanical arm and guiding-supporting frame. the device is driven by servo motor and reducer via gear rack, it has high positioning accuracy. the photoelectric correlation switch is installed at the inlet of machine body, it can quickly find the base line of work-pieces in feeding direction when they are sent into the machine, and make the axial positioning as a benchmark, which can realize the precise positioning of work-piece.



Technical parameter

No

Items

Parameters



Profile types

H beam,I beam, ChannelSteel, angle steel,etc.

1

Diameter range

H profiles 50~500mm-800mm or special design

2

Effective cutting length

Max12m



maxLoading capacity

5000Kg



Positioning accuracy

0.3mmmm



Repeat positioning accuracy

0.02mm



Cutting accuracy

1.5mmmm



Cutting speed

10~2000mm/min



Moving speed

 10~6000mm/min(Can be set)



Oblique angle between tube

10-170



Precision error

0.2/360



Plasma cutting thickness

Max 25mm,25-60mm cut by gas



Requirements ofWork-piece ovality

1%



X-axis

Effective cutting length

1000mm(special specifications can be customized)



Y-axis

Axis effective stroke length

1500mm



Z-axis

Axis effective stroke length

600mm



W-axis

Unlimited rotation

Rotary fittings



B-axis



Yaw angle    270



C-axis



Cutting gun  rotation angle  270



"X1"axis



upon requirement,the standard modelis12M.



Voltage

3-phase and 4 wires,380  10%V, 50  1Hz



Compressed air pressure

0.5MPa



Environment temperature

0 - 40



Environment moisture

 75%



Samples show
steel HI beam and steel tube CNC plasma cutting robot machine
