Precision Milling Tool Grinder

Inquiry Now Start Order

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Specifications

Specifications of Milling Tool Grinder:

		mm	inch
End mill capacity	dia. Of shank	50mm	2
	dia. Of edge	225mm	9
	length	250mm	10
Swing over table		245mm	9-3/4
Longitudinal travel (X axis)		150mm	6
Cross travel of table (Y Axis)		75mm	3
Max. Wheel		125 x 50 x 32mm	5 x 2 x 1-1/4
Tilt adjustment for wheelhead		+35° -10°
Air bearing swivel		360°
Air bearing stroke		250mm	10
Table infeed graduation		0.02mm	0.001
Air bearing graduation		6.3MPa
Pipe joint diameter		Z/4 1
Collet fit for spindle		5C
Parallelism between two tables		0.01/100mm, 0.01/100
Motor speed: 2, 800rpm		3, 450/2, 580rpm
Voltage		220V ,1 phase
Power		0.75kw	1HP
Frequency		50Hz

Radius Grinding Attachment:

Install T-shaped slot width	12.7mm
Spring chuck	5C
The minimum feed unit	0.012mm
Maximum griding arc radius	75mm
Equal dividing	30degree
Parallelish of work hole to base	0.02/60mm
Radial run out of work hole center line(60mm for hole)	0.015mm

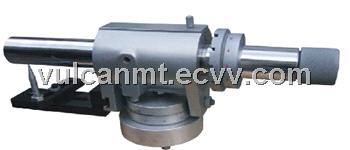

Air Bearing Grinding Attachment:

Max. Stroke of air bearing sleeve	220mm
Collect for work table	5C
T-shaped slot width for table	12.7mm
Air consumption	>0.63Mpa
Tracheal joints	6mm
Turning angle	360degree
Parallelism of workhole center line to abse surface	0.015mm
Radius run out of workhole center line(60mm for hole)	0.015mm
