Home >Products Catalog > Laser Cutting Machine > Die Board Double Head Laser Machine (NC-C1290)

Die Board Double Head Laser Machine (NC-C1290)

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Model Number: NC-C1290
Brand Name: NICE-CUT
Packaging Details: Wooden case
FOB Price: 3,000-4,200 USD
Payment Terms: T/T, Western Union
Min.Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Year
Shipping: By Ocean
Update Time: 2/24/2014

Specifications

Die Board Double Head Laser Machine (NC-C1290)
1,High quality 80W laser tube
2,Automatic working table
3,100W,120W tube
4,CE

Laser Machine Application:

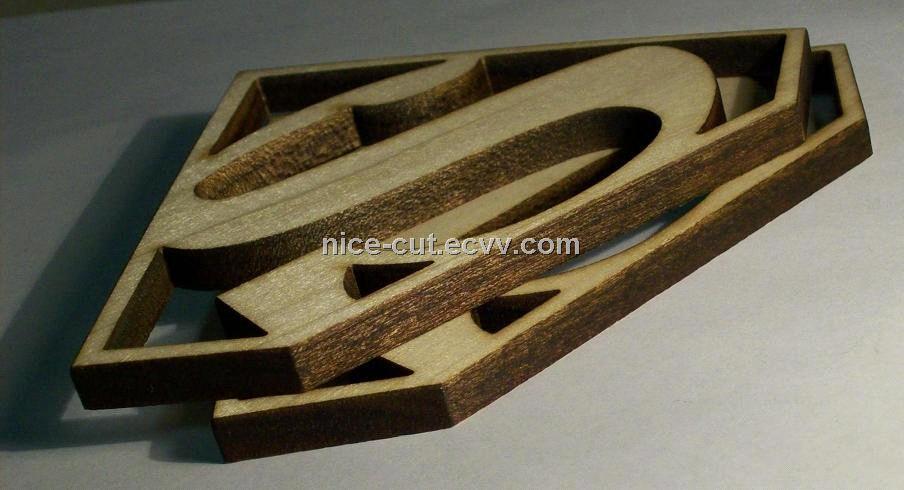

1) Engraving hard materials: Stone, granite, ceramic, glass, coated metal, etc
2) Cutting soft materials: fabric, cloth, jeans, paper, etc
3) Also can be used for engraving or cutting other materials, such as bamboo, wood, MDF, plywood, acrylic, plastic, ABS, double-color board, rubber, cardboard, leather, etc.
Special Features:
1, For cutting wood, plywood, cardboard, etc flammable materials, we suggest adopt air compressor, provent burn or fire from materials surface.
2, U flash Disk Supported: Read files directly from U-flash disk, you can work even without PC
3, Red Dot Pointer: Provides a visible means of determing engraving location.
4, Air Assist: Remove heat and combustible gases from the cutting surface.
5, Intuitive Control Panel: Speed, power, and more controls directly from the laser.

Key Specifications:
Type
NC-C1290

Engraving Area

1200 x 900mm
Laser Power
100W
Laser Type
CO2 Laser Tube

Engraving speed

0~1000mm/s

Cutting speed

0~600mm/s

Resetting positioning accuracy

0.01mm

Cutting depth

25mm acrylic(others depend on cutting materials)

Minimum Shaping Character

1.5× 1.5mm

Power supply

220V± 10% 50HZ or 110V± 10% 60HZ
Gross power
1200W
Software supported
ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported
PLT, DXF, BMP, JPG, GIF, PGN, TIF
Engraver for Curve surfaces (Yes/No)

Rotary attachment can be added for cylinders

Water Cooling: (Yes / No)

Yes
Maximum Height of Materials to

Engrave (mm)

350mm(Up and down by motor)
Red light position
Included
Assistant Equipment
Water chiller
Exhaust Fan
Air assist

Optional Spare Parts

Automatic up and down table
Rotary System
Autofocus system
Air compressor
Recommended Spare Parts / Consumables

Laser Tube and Lens


Optional parts:

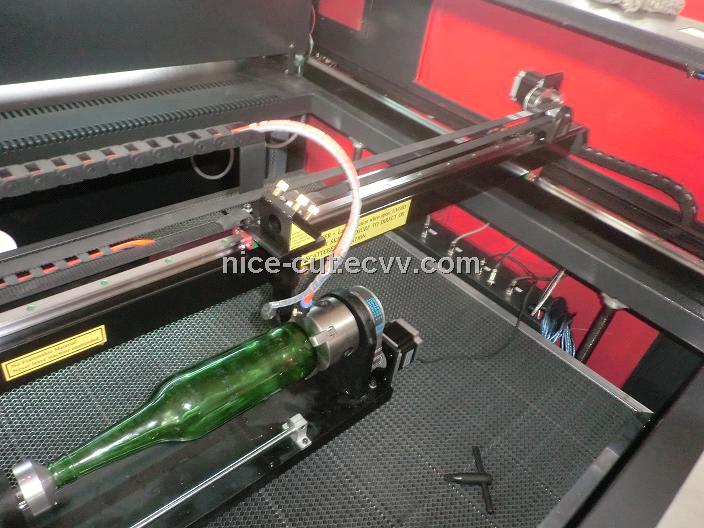

1, Rotary attachment for engraving bottles and round objects is available as an option.
2, Motorized Z table, autofocus sensor, and beam combiner with visible red laser pointer are included.

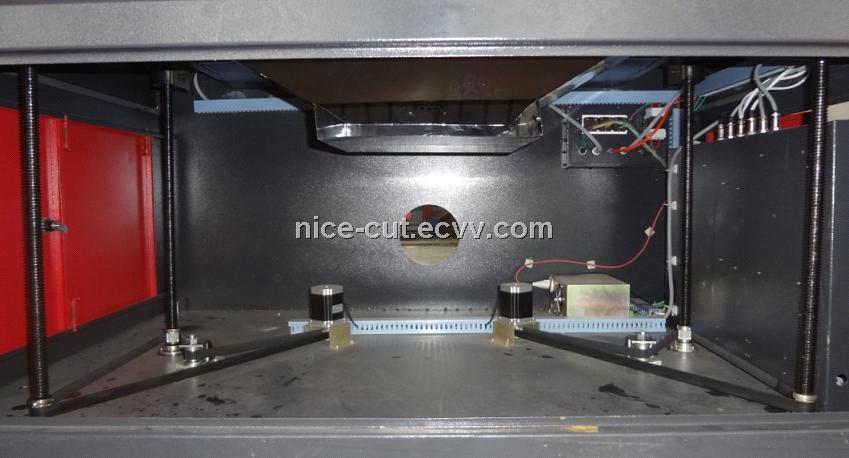

3, Motorized up and down working table makes thicker material engraving and cutting more easy.

Accessaries free offered:
Water chiller, exhaust fan, air pump, tool kit, Demo and software CD, focus board, Dongle, Spanner, limit sensor, tapes, etc.
