Shanghai Vulcan Machinery Co., Ltd.
China Manufacturer with main products: Machine Tools, Lathe, Milling Machine, Drilling Machine, Grriding Machine, Metal Forming Machine, Metal Bending Machine, EDM Machine |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Specifications

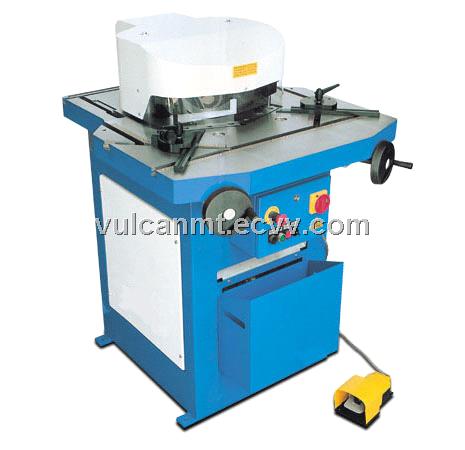

Double Head Notching Machine
Punching Head:
● Independent punching head with Trump tooling system
● Max punch diameter: 30mm
● Punching capacity: 3mm mild steel-2mm stainless steel
● Easy and fast tools change
● Plexiglas protection
Description:
1. Back punching station with trumpf tooling attachment. Maximum diameter is 30mm
2. Quick punch and die fixing, very accurate holes thanks to a level locking and Pu stripper
Specifications:
| Type |
DN2004P
|
DN2006P
|
||
| Blade length |
KN
|
200
|
200
|
|
| Max. Thickness of workpiece |
mm
|
4
|
6
|
|
| Shear angle |
°
|
30° ~140°
|
30° ~140°
|
|
| Strokes per minute | L=200mm |
spm
|
30
|
30
|
| L=50mm |
spm
|
45
|
45
|
|
| Table dimension |
mm
|
900 x 980
|
900 x 1150
|
|
| Max. Punching diameter |
mm
|
30
|
30
|
|
| Max. Punching thickness |
mm
|
2
|
3
|
|
| Punching depth |
mm
|
130
|
130
|
|
| Machine dimension |
mm
|
900 x 1030 x 1180
|
900 x 1000 x 1360
|
|
| Machine weight |
Kg
|
1000
|
1250
|
|
