Laboratory Torque Rheometer/Mixer/Extruder

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Model Number: GW5300
Brand Name: Gaoge
Packaging Details: wooden case
FOB Price: 10,000-100,000 GBP
Payment Terms: L/C, T/T, Paypal, Western Union
Min.Order Quantity: 1 Set/Sets
Supply Ability: 100 Set/Sets per Quarter
Shipping: delivery date 30 days from Shenzhen Port
Update Time: 3/2/2014

Specifications

Specifications

Torque Rheometer
1.Well-combined rheometer available,

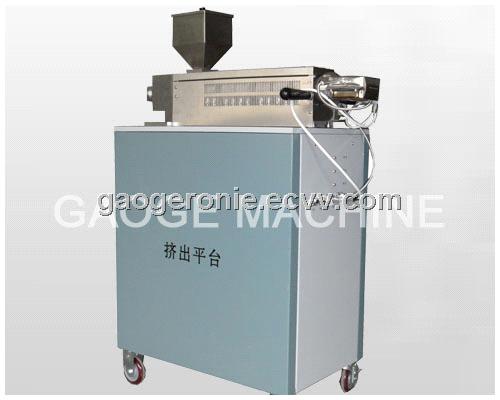

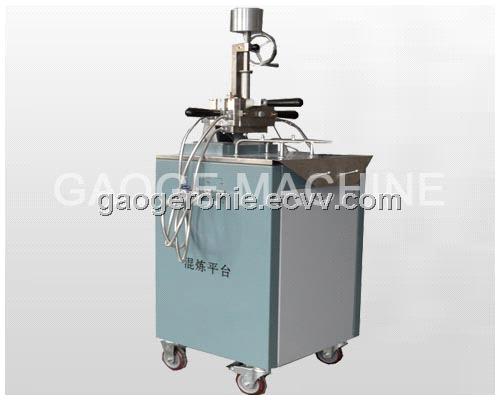

2.Consisting of rheometer, mixer, extruder, etc

We are a leading manufactory of test equipment located in China and have been in this field for more than twenty years. Based on our extensive experience, we first developed torque rheometer controlled by computer in 1996. This equipment is popular with enterprises and almost all Chinese universities. We can sell more than 50 sets every year, just in 2007, we sold 68 sets.

APPLICATION
GW5300 Torque Rheometer. It is a well-combined rheometer available, consisting of rheometer, mixer, extruder, etc. It is applicable to determine several parameters of thermoplastic material via host computer with proprietary software, such as thermal stability, shear stability, fluidity and plasticizing behavior. It also can measure curing properties of thermosetting material during processing which is similar to the actual process. The typical specimens are PVC, PE, PP, rubber, etc.
Torque Rheometer is suitable to test rheological characteristics of polymers, typical applications in the polymer processing include:
l        Determination of the processing behavior
l        Evaluating processability
l        Compounding polymers with additives
l        Extruding profiles, films, etc. for further testing
l        Rheological testing
l        Optimizing process parameters or performing quality control, etc.
The reason that we use torque rheometer, as follow:
l        Polymers processing under molten state, such as extruding, injection molding
l        Processibility and the product quality affected by fluidity(viscosity)
l        Torque rheometer and measuring sensors are miniaturization production equipments
l        Testing process is similar to the actual process

FEATURES
l        Advanced electric control, high reliability, easy to maintain;
l        Well-made, stainless steel bearing bushing, wearable and durable;
l        Abundant processing software, powerful function, fast and efficient, easy to operate;
l        High accuracy, high repeatability;
l        High cost performance;
l        Diagram output for speed, torque, temperature, pressure and time;
l        Methods and datas interchangeable between lab and automation equipment;

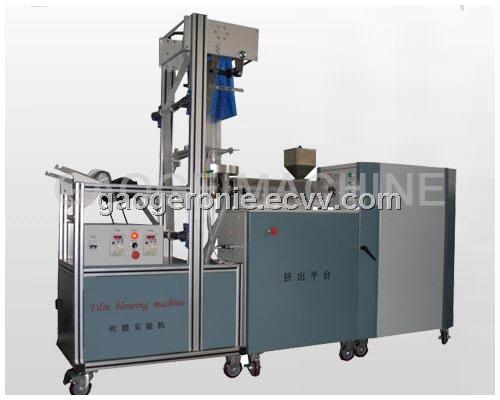

l        Possible to connect with mixer, extruder, calender, blown film unit, pelletizer, etc.

KEY SPECIFICATION
Main Machine
Item
Main Machine
Power of motor and reducer
4.0kw
Speed range
2~120 rpm (stepless)
2~200 rpm (stepless)
Speed accuracy
±0.2% F.S.
Torque range
0~300Nm
Torque accuracy
0.1%~0.2% F.S.
Pressure range
0 ~100MPa*
Pressure accuracy
0.1%~0.5% F.S.
Temperature range
Room Temperature~400°C
Temperature accuracy
±0.1°C
Temperature control
9 zones, 1 zone for material temperature
Cooling control
6 zones, 4 zones for air cooling
Power
AC380VNE,14A,E≤4Ω
* Measuring range of pressure sensor, 60MPa max. in the actual process.
